Delrin® 100T NC010

Sold by DuPont
Polymer Name: Polyacetal Homopolymer (POM)
Processing Methods: Extrusion, Sheet, Plaques & Profiles Extrusion, Injection Molding
Additives Included: Mold Release Agent, Lubricant (Unspecified)
Flexural Modulus: 1700.0 MPa
Start Order
Secure
Order Quantity
Price
Available upon quote
Minimum Order Quantity
Quote required
Lead Time
Quote required
Available Incoterms
Quote required
Regional Availability
Quote required
Delrin® 100T NC010
DuPont
Similar Products from DuPont NEW
TypeDocument Name
Brochure
Technology Profile Laser Welding
Technology Profile Laser Welding
Brochure
Other
Hot Runner Manual for Robust Molding of Semi-crystalline Resins
Hot Runner Manual for Robust Molding of Semi-crystalline Resins
Other
Other
DuPont™ Delrin® Drives Productivity and Sustainability for High Speed Filling Lines
DuPont™ Delrin® Drives Productivity and Sustainability for High Speed Filling Lines
Other
Technical Data Sheet
Delrin® 100T NC010 Technical Data Sheet
Delrin® 100T NC010 Technical Data Sheet
Technical Data Sheet
Other
Safety Restraint Systems
Safety Restraint Systems
Other
Other
DuPont SVHC Statement - Delrin®, Elvamide®, Minlon®, Rynite®, Vamac®
DuPont SVHC Statement - Delrin®, Elvamide®, Minlon®, Rynite®, Vamac®
Other
Other
Delrin® acetal resin Molding Guide
Delrin® acetal resin Molding Guide
Other
Other
Delrin® Acetal Homopolymer Resin Molding Tips
Delrin® Acetal Homopolymer Resin Molding Tips
Other
Other
General Design Principles - Module I: Chapter 8
General Design Principles - Module I: Chapter 8
Other
Brochure
Electrical/Electronic Thermoplastic Encapsulation
Electrical/Electronic Thermoplastic Encapsulation
Brochure
Brochure
DuPont Performance Polymers - Self Tapping Screws
DuPont Performance Polymers - Self Tapping Screws
Brochure
Brochure
Delrin® E-Grades for Low Emissions
Delrin® E-Grades for Low Emissions
Brochure

Knowde Enhanced TDS

Expand All

+

Identification & Functionality

Delrin® 100T NC010 Features & Benefits

Applications & Uses

Properties

Color
Flame Rating
Physical Form
Automotive Specifications
ASTM D6778 POM0100 B54620
Part Marking Code
>POM-I<
Resin ID
POM-I
Flame Rating
UL 94 HB
Mechanical Properties
ValueUnitsTest Method / Conditions
Tensile Modulus1900MPaISO 527
Yield Stress55MPaISO 527-1/-2
Yield Strain25%ISO 527-1/-2
Nominal Strain at Break>500%ISO 527-1/-2
Flexural Modulus1700MPaASTM D 790
Flexural Stress at 3.5%52MPaISO 178
Charpy Impact Strength (23°C)No BreakkJ/m2ISO 179/1eU
Charpy Impact Strength (-30°C)No BreakkJ/m2ISO 179/1eU
Charpy Notched Impact Strength (23°C)26kJ/m2ISO 179/1eA
Charpy Notched Impact Strength (-30°C)14kJ/m2ISO 179/1eA
Rockwell Hardness - M Scale59-ISO 2039-2
Rockwell Hardness - R Scale113-ASTM D785
Poisson's Ratio0.41-ASTM E132
Physical Properties
ValueUnitsTest Method / Conditions
Melt Volume - Flow Rate1.9cm³/10minISO 1133
Melt Mass Flow Rate - MFR (190°C/2.16 kg)2.1g/10 minISO 1133
Load2.16kgISO 1133
Molding Shrinkage - Parallel1.3%ISO 294-4, 2577
Molding Shrinkage - Normal1.5%ISO 294-4, 2577
Temperature190°CISO 1133
Thermal Properties
ValueUnitsTest Method / Conditions
Melting Temperature (10°C/min)178°CISO 11357-1/-3
Temperature of Deflection Under Load(1.8 MPa)72°CISO 75-1/-2
Temperature of Deflection Under Load (0.45 MPa)130°CISO 75-1/-2
Vicat Softening Temperature (50°C/h, 10N)173°CISO 306
Coefficient of Linear Thermal Expansion - Parallel120E-6/KISO 11359-1/-2
Coefficient of Linear Thermal Expansion - Normal120E-6/KISO 11359-1/-2
Relative Temperature Index - Electrical (1.5 mm)100°CUL 746B
Relative Temperature Index - Electrical (3 mm)100°CUL 746B
Relative Temperature Index - Impact (1.5 mm)85°CUL 746B
Relative Temperature Index - Impact (3 mm)85°CUL 746B
Relative Temperature Index - Strength (1.5 mm)85°CUL 746B
Relative Temperature Index - Strength (3 mm)85°CUL 746B
Effective Thermal Diffusivity7E-8m²/s-
Electrical Properties
ValueUnitsTest Method / Conditions
Dissipation Factor (1 MHz)90E-4IEC 62631-2-1
Comparative Tracking Index - CTI600VUL 746
Flammability
ValueUnitsTest Method / Conditions
Burning Behaviour (1.5 mm, Nominal Thickness)HBclassIEC 60695-11-10
Glow Wire Flammability Index - GWFI (1 mm)550°CIEC 60695-2-12
Glow Wire Flammability Index - GWFI (2 mm)550°CIEC 60695212
Glow Wire Flammability Index - GWFI (3 mm)550°CIEC 60695-2-12
FMVSS ClassB-ISO 3795 (FMVSS 302)
Burning Rate (1 mm, Thickness)42mm/minISO 3795 (FMVSS 302)
Ul RecognitionYes-UL 94
Thickness Tested1.5mmIEC 60695-11-10
Other Properties
ValueUnitsTest Method / Conditions
Humidity Absorption (2 mm)0.3%Sim. to ISO 62
Water Absorption (2 mm)0.9%Sim. to ISO 62
Density1370kg/m³ISO 1183
Processing Information (Extrusion)
ValueUnitsTest Method / Conditions
Melt Temperature Range195 - 205°C-
Melt Temperature Optimum200°C-
Drying Time (Dehumidified Dryer)2.0 - 4.0h-
Drying Temperature75 - 85°C-
Processing Moisture Content≤0.05%-
Processing Information (Injection Molding)
ValueUnitsTest Method / Conditions
Drying Temperature80°C-
Drying RecommendedYes--
Drying Time (Dehumidified Dryer)4.0 - 8.0h-
Processing Moisture Content≤0.05%-
Melt Temperature Optimum205°C-
Min. Melt Temperature200°C-
Max. Melt Temperature210°C-
Max. Screw Tangential Speed0.2m/s-
Mold Temperature Optimum50°C-
Min. Mold Temperature40°C-
Max. Mold Temperature60°C-
Hold Pressure Range60 - 80MPa-
Hold Pressure Time7.5s/mm-
Annealing Time - Optional30min/mm-
Annealing Temperature160°C-
VDA Properties
ValueUnitsTest Method / Conditions
Emissions<81mg/kgVDA 275

Regulatory & Compliance

Certifications & Compliance
Compliance
UL Flame Rated

Technical Details & Test Data

Viscosity vs Shear Rate

DuPont Delrin 100T NC010 Viscosity vs Shear Rate

Shear Stress vs Shear Rate

DuPont Delrin 100T NC010 Shear Stress vs Shear Rate

Dynamic Shear Modulus vs Temperature

DuPont Delrin 100T NC010 Dynamic Shear Modulus vs Temperature

Stress vs Strain

DuPont Delrin 100T NC010 Stress vs Strain

Secant Modulus vs Strain

DuPont Delrin 100T NC010 Secant Modulus vs Strain

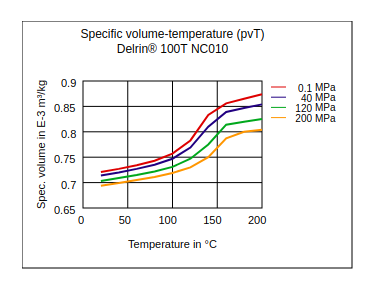

Specific Volume Temperature (pvT)

DuPont Delrin 100T NC010 Specific Volume Temperature (pvT)
