Delrin® 300TE NC010

Sold by DuPont
Polymer Name: Polyacetal Homopolymer (POM)
Processing Methods: Injection Molding, Extrusion
Additives Included: Mold Release Agent, Lubricant (Unspecified)
Flexural Modulus: 1900.0 MPa
Start Order
Order Quantity
Available upon quote
Minimum Order Quantity
Quote required
Lead Time
Quote required
Available Incoterms
Quote required
Regional Availability

Knowde Enhanced TDS

Expand All


Identification & Functionality

Delrin® 300TE NC010 Features & Benefits

Product Highlights

• Toughened, medium-high viscosity

• Very good balance of melt flow and impact properties

• Low noise properties

Applications & Uses


Physical Form
Part Marking Code
Mechanical Properties
ValueUnitsTest Method / Conditions
Tensile Modulus1900MPaISO 527-1/-2
Yield Stress53MPaISO 527-1/-2
Yield Strain20%ISO 527-1/-2
Flexural Modulus1900MPaISO 178
Poisson's Ratio0.41--
Nominal Strain (at Break)36%ISO 527-1/-2
Flexural Stress (at 3.5%)56MPaISO 178
Notched Charpy Impact Strength (at 23°C)16kJ/m²ISO 179/1eA
Notched Charpy Impact Strength (at -30°C)10kJ/m²ISO 179/1eA
Hardness (Rockwell Scale M)69.3-ISO 2039-2
Hardness (Rockwell Scale R)116-ISO 2039-2
Typical Properties
ValueUnitsTest Method / Conditions
Resin IdentificationPOM-I-ISO 1043
Thermal Properties
ValueUnitsTest Method / Conditions
Specific Heat Capacity of Melt2880J/(kg K)-
Melt Temperature (at 10°C/min)178°CISO 11357-1/-3
Temperature of Deflection Under Load (1.8 Mpa)71°CISO 75-1/-2
Temperature of Deflection Under Load (0.45 Mpa)132°CISO 75-1/-2
Vicat Softening Temperature (at 50°C/H 10N)172°CISO 306
Coefficient of Linear Thermal Expansion (Parallel)120E-6/KISO 11359-1/-2
Coefficient of Linear Thermal Expansion (Normal)125E-6/KISO 11359-1/-2
Thermal Conductivity of Melt0.21W/(m K)ISO 22007-2
ValueUnitsTest Method / Conditions
FMVSS ClassB-ISO 3795 (FMVSS 302)
Burning Rate (at 1mm Thickness)46mm/minISO 3795 (FMVSS 302)
Other Properties
ValueUnitsTest Method / Conditions
Humidity Absorption (at 2mm)0.2%Sim. to ISO 62
Water Absorption (at 2mm)0.9%Sim. to ISO 62
Density1380kg/m³ISO 1183
Density of Melt1150kg/m³-
Processing Information (Extrusion)
ValueUnitsTest Method / Conditions
Melt Temperature Range195 - 205°C-
Melt Temperature (Optimum)200°C-
Drying Time (Dehumidified Dryer)2 - 4h-
Drying Temperature75 - 85°C-
Processing Moisture Contentmax. 0.05%-
Processing Information (Injection Molding)
ValueUnitsTest Method / Conditions
Drying Temperature80°C-
Drying Recommendedyes--
Drying Time (Dehumidified Dryer)4 - 8h-
Processing Moisture Contentmax. 0.05%-
Hold Pressure Range60 - 80MPa-
Hold Pressure Time7.5s/mm-
Ejection Temperature115°C-
Annealing Temperature160°C-
Melt Temperature (Optimum)205°C-
Melt Temperature (Minimum)200°C-
Melt Temperature (Maximum)210°C-
Maximum Screw Tangential Speed0.2m/s-
Mold Temperature (Optimum)50°C-
Mold Temperature (Minimum)40°C-
Mold Temperature (Maximum)60°C-
Annealing Time (Optional)30min/mm-
VDA Properties
ValueUnitsTest Method / Conditions
Emissionsmax. 2mg/kgVDA 275
Tribological Properties
ValueUnitsTest Method / Conditions
Coefficient of Sliding Friction (1H against Steel)0.7-ASTM 1894
Rheological Properties
ValueUnitsTest Method / Conditions
Melt Volume-Flow Rate (at 190°C, 2.16 kg)6cm³/10minISO 1133
Melt Mass Flow Rate (at 190°C, 2.16 kg)7g/10minISO 1133
Mold Shrinkage (Parallel)1.3%ISO 294-4, 2577
Mold Shrinkage (Normal)1.5%ISO 294-4, 2577

Regulatory & Compliance

Technical Details & Test Data

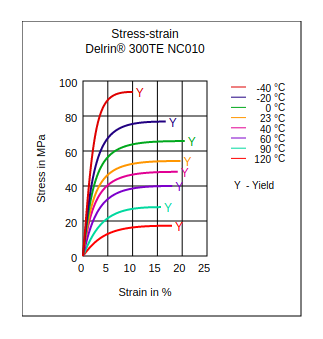

Stress vs Strain

DuPont Delrin 300TE NC010 Stress vs Strain

Secant Modulus vs Strain

DuPont Delrin 300TE NC010 Secant Modulus vs Strain

Tensile Modulus vs Temperature

DuPont Delrin 300TE NC010 Tensile Modulus vs Temperature
