Delrin® 500P is a general purpose medium viscosity acetal homopolymer for injection molding. It has improved processing thermal stability, a good combination of mechanical properties, and low VOC emissions.
Polymer Name: Polyacetal Homopolymer (POM)
Processing Methods: Injection Molding
Additives Included: Mold Release Agent, Lubricant (Unspecified)
Flexural Modulus: 3000.0 MPa
Start Order
SecureOrder Quantity
Price
Available upon quote
Minimum Order Quantity
Quote required
Lead Time
Quote required
Available Incoterms
Quote required
Regional Availability
View
Popular DuPont Products
View All DuPont Products Delrin® 300TE BK602
Delrin® 500AL NC010
Delrin® 570 NC000
TypeDocument Name
Brochure
Technology Profile Laser Welding
Technology Profile Laser Welding
BrochureOther
Hot Runner Manual for Robust Molding of Semi-crystalline Resins
Hot Runner Manual for Robust Molding of Semi-crystalline Resins
OtherBrochure
DuPont Performance Polymers - Self Tapping Screws
DuPont Performance Polymers - Self Tapping Screws
BrochureTechnical Data Sheet
Delrin® 500P NC010 Technical Data Sheet
Delrin® 500P NC010 Technical Data Sheet
Technical Data SheetOther
Delrin® acetal resin Molding Guide
Delrin® acetal resin Molding Guide
OtherOther
Safety Restraint Systems
Safety Restraint Systems
OtherBrochure
Electrical/Electronic Thermoplastic Encapsulation
Electrical/Electronic Thermoplastic Encapsulation
BrochureBrochure
Delrin® E-Grades for Low Emissions
Delrin® E-Grades for Low Emissions
BrochureOther
Delrin® Acetal Homopolymer Resin Molding Tips
Delrin® Acetal Homopolymer Resin Molding Tips
OtherOther
Delrin® Design Guide-Module III
Delrin® Design Guide-Module III
OtherOther
Delrin® vs Acetal Copolymer White Paper
Delrin® vs Acetal Copolymer White Paper
OtherOther
General Design Principles - Module I: Chapter 8
General Design Principles - Module I: Chapter 8
OtherKnowde Enhanced TDS
Identification & Functionality
Additives Included
Polymer Name
Plastics & Elastomers Functions
Technologies
Product Families
Delrin® 500P NC010 Features & Benefits
Materials Features
Applications & Uses
Markets
Applications
Plastics & Elastomers End Uses
Plastics & Elastomers Processing Methods
Properties
Chemical Resistance
Color
Flame Rating
Part Marking Code
Mechanical Properties
| Value | Units | Test Method / Conditions | |
| Tensile Modulus | 3100 | MPa | ISO 527-1/-2 |
| Yield Stress | 71 | MPa | ISO 527-1/-2 |
| Yield Strain | 17 | % | ISO 527-1/-2 |
| Flexural Modulus | 3000 | MPa | ISO 178 |
| Nominal Strain (at Break) | 30 | % | ISO 527-1/-2 |
| Flexural Stress (at 3.5%) | 80 | MPa | ISO 178 |

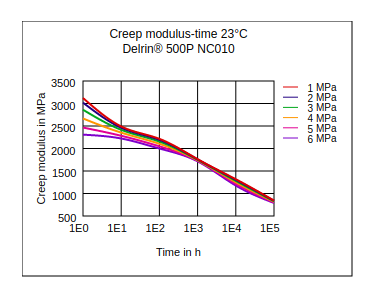

| Tensile Creep Modulus (1h) | 2800 | MPa | ISO 899-1 |
| Tensile Creep Modulus (1000h) | 1600 | MPa | ISO 899-1 |
| Charpy Impact Strength (at 23°C) | 300 | kJ/m² | ISO 179/1eU |
| Charpy Impact Strength (at -30°C) | 280 | kJ/m² | ISO 179/1eU |
| Notched Charpy Impact Strength (at 23°C) | 9 | kJ/m² | ISO 179/1eA |
| Ball Indentation Hardness (H 358/30) | 192 | MPa | ISO 2039-1 |
| Notched Charpy Impact Strength (at -30°C) | 8 | kJ/m² | ISO 179/1eA |
| Ball Indentation Hardness (H 961/30) | 170 | MPa | ISO 2039-1 |
| Notched Charpy Impact Strength (at -40°C) | 8 | kJ/m² | ISO 179/1eA |
| Poisson's Ratio | 0.37 | - | - |
| Puncture - Maximum Force (at 23°C) | 2000 | N | ISO 6603-2 |
| Puncture Energy (at 23°C) | 3 | J | ISO 6603-2 |
| Notched Izod Impact Strength (at 23°C) | 9 | kJ/m² | ISO 180/1A |
| Notched Izod Impact Strength (at -30°C) | 8 | kJ/m² | ISO 180/1A |
| Izod Impact Strength (at 23°C) | 280 | kJ/m² | ISO 180/1U |
| Izod Impact Strength (at -30°C) | 250 | kJ/m² | ISO 180/1U |
| Hardness (Rockwell Scale M) | 92 | - | ISO 2039-2 |
| Hardness (Rockwell Scale R) | 120 | - | ISO 2039-2 |
Typical Properties
| Value | Units | Test Method / Conditions | |
| Resin Identification | POM | - | ISO 1043 |
Thermal Properties
| Value | Units | Test Method / Conditions | |
| Melt Temperature (at 10°C/min) | 178 | °C | ISO 11357-1/-3 |
| Temperature of Deflection Under Load (1.8 Mpa) | 93 | °C | ISO 75-1/-2 |
| Temperature of Deflection Under Load (1.8 Mpa, Annealed) | 110 | °C | ISO 75-1/-2 |
| Temperature of Deflection Under Load (0.45 Mpa) | 160 | °C | ISO 75-1/-2 |
| Vicat Softening Temperature (at 50°C/H 50N) | 155 | °C | ISO 306 |
| Coefficient of Linear Thermal Expansion (Parallel) | 100 | E-6/K | ISO 11359-1/-2 |

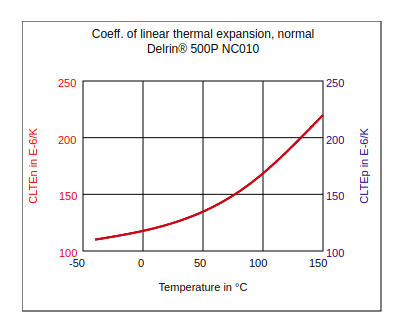

| Coefficient of Linear Thermal Expansion (Normal) | 100 | E-6/K | ISO 11359-1/-2 |
| Relative Thermal Index (Electrical, 0.75mm) | 50 | °C | UL 746B |
| Relative Thermal Index (Electrical, 1.5mm) | 110 | °C | UL 746B |
| Relative Thermal Index (Electrical, 3mm) | 110 | °C | UL 746B |
| Relative Thermal Index (Impact, 0.75mm) | 50 | °C | UL 746B |
| Relative Thermal Index (Impact, 1.5mm) | 85 | °C | UL 746B |
| Relative Thermal Index (Impact, 3mm) | 90 | °C | UL 746B |
| Relative Thermal Index (Strength, 0.75mm) | 50 | °C | UL 746B |
| Relative Thermal Index (Strength, 1.5mm) | 90 | °C | UL 746B |
| Relative Thermal Index (Strength, 3mm) | 95 | °C | UL 746B |
| TGA curve | available | - | ISO 11359-1/-2 |
| Ball Pressure Test | 165 | °C | IEC 60695-10-2 |
| Thermal Conductivity of Melt | 0.24 | W/(m K) | ISO 22007-2 |
| Effective Thermal Diffusivity | 9.0e-08 | m²/s | - |
Electrical Properties
| Value | Units | Test Method / Conditions | |
| Surface Resistivity | 400000000000000 | Ohm | IEC 62631-3-2 |
| Electric Strength | 44 | kV/mm | IEC 60243-1 |
| Relative Permittivity (at 100Hz) | 3.8 | - | IEC 62631-2-1 |
| Relative Permittivity (at 1MHz) | 3.8 | - | IEC 62631-2-1 |
| Dissipation Factor (at 100 Hz) | 90 | E-4 | IEC 62631-2-1 |
| Dissipation Factor (at 1 MHz) | 90 | E-4 | IEC 62631-2-1 |
| Comparative Tracking Index | 600 | - | IEC 60112 |
| Relative Permittivity (Printed Circuits and Boards, 2.5 GHz) | 3.1 | - | IEC 61189-2-721 |
| Dissipation Factor (Printed Circuits and Boards, 2.5 GHz) | 430 | E-4 | IEC 61189-2-721 |
| Volume Resistivity | 2000000000000 | Ohm.m | IEC 62631-3-1 |
Flammability
| Value | Units | Test Method / Conditions | |
| Oxygen Index | 22 | % | ISO 4589-1/-2 |
| FMVSS Class | B | - | ISO 3795 (FMVSS 302) |
| Burning Behavior (at 1.5mm Nominal Thickness) | UL94 HB | class | IEC 60695-11-10 |
| Burning Behavior (at 0.8mm Thickness) | UL94 HB | class | IEC 60695-11-10 |
| Glow Wire Flammability Index (at 1mm) | 550 | °C | IEC 60695-2-12 |
| Glow Wire Flammability Index (at 2mm) | 550 | °C | IEC 60695-2-12 |
| Glow Wire Flammability Index (at 3mm) | 550 | °C | IEC 60695-2-12 |
| Burning Rate (at 1mm Thickness) | 20 | mm/min | ISO 3795 (FMVSS 302) |
Other Properties
| Value | Units | Test Method / Conditions | |
| Humidity Absorption (at 2mm) | 0.2 | % | Sim. to ISO 62 |
| Water Absorption (at 2mm) | 1.3 | % | Sim. to ISO 62 |
| Density of Melt | 1190 | kg/m³ | - |
| Density | 1420 | kg/m³ | ISO 1183 |
Processing Information (Injection Molding)
| Value | Units | Test Method / Conditions | |
| Drying Recommended | yes | - | - |
| Drying Temperature | 80 | °C | - |
| Drying Time (Dehumidified Dryer) | 2 - 4 | h | - |
| Processing Moisture Content | max. 0.2 | % | - |
| Hold Pressure Range | 80 - 100 | MPa | - |
| Hold Pressure Time | 8 | s/mm | - |
| Annealing Temperature | 160 | °C | - |
| Melt Temperature (Optimum) | 215 | °C | - |
| Melt Temperature (Minimum) | 210 | °C | - |
| Melt Temperature (Maximum) | 220 | °C | - |
| Maximum Screw Tangential Speed | 0.3 | m/s | - |
| Mold Temperature (Optimum) | 90 | °C | - |
| Mold Temperature (Minimum) | 80 | °C | - |
| Mold Temperature (Maximum) | 100 | °C | - |
| Annealing Time (Optional) | 30 | min/mm | - |
VDA Properties
| Value | Units | Test Method / Conditions | |
| Fogging (F-Value, Refraction) | 90 | % | ISO 6452 |
| Fogging (G-Value, Condensate) | 0.35 | mg | ISO 6452 |
| Emissions | max. 8 | mg/kg | VDA 275 |
Rheological Properties
| Value | Units | Test Method / Conditions | |
| Melt Volume-Flow Rate (at 190°C, 2.16 kg) | 13 | cm³/10min | ISO 1133 |
| Melt Mass Flow Rate (at 190°C, 2.16 kg) | 15 | g/10min | ISO 1133 |
| Mold Shrinkage (Parallel) | 2 | % | ISO 294-4, 2577 |
| Mold Shrinkage (Normal) | 1.9 | % | ISO 294-4, 2577 |
Chemical Resistance
| Chemical Type | Chemical Name | Resistance |
| Acids | Acetic Acid (5% by mass) (23°C) | Probably Resistant |
| Acids | Chromic Acid solution (40% by mass) (23°C) | Not Recommended |
| Acids | Citric Acid solution (10% by mass) (23°C) | Not Recommended |
| Acids | Hydrochloric Acid (36% by mass) (23°C) | Not Recommended |
| Acids | Lactic Acid (10% by mass) (23°C) | Not Recommended |
| Acids | Nitric Acid (40% by mass) (23°C) | Not Recommended |
| Acids | Sulfuric Acid (38% by mass) (23°C) | Not Recommended |
| Acids | Sulfuric Acid (5% by mass) (23°C) | Not Recommended |
| Alcohols | Ethanol (23°C) | Probably Resistant |
| Alcohols | Isopropyl alcohol (23°C) | Probably Resistant |
| Alcohols | Methanol (23°C) | Probably Resistant |
| Bases | Ammonium Hydroxide solution (10% by mass) (23°C) | Not Recommended |
| Bases | Sodium Hydroxide solution (1% by mass) (23°C) | Not Recommended |
| Bases | Sodium Hydroxide solution (35% by mass) (23°C) | Not Recommended |
| Ethers | Diethyl ether (23°C) | Probably Resistant |
| Hydrocarbons | iso-Octane (23°C) | Probably Resistant |
| Hydrocarbons | n-Hexane (23°C) | Probably Resistant |
| Hydrocarbons | Toluene (23°C) | Probably Resistant |
| Ketones | Acetone (23°C) | Probably Resistant |
| Mineral oils | Insulating Oil (23°C) | Probably Resistant |
| Mineral oils | SAE 10W40 multigrade motor oil (130°C) | Not Recommended |
| Mineral oils | SAE 10W40 multigrade motor oil (23°C) | Probably Resistant |
| Mineral oils | SAE 80/90 hypoid-gear oil (130°C) | Not Recommended |
| Other | 1% nonylphenoxy-polyethyleneoxy ethanol in water (23°C) | Probably Resistant |
| Other | 50% Oleic acid + 50% Olive Oil (23°C) | Probably Resistant |
| Other | DOT No. 4 Brake fluid (130°C) | Not Recommended |
| Other | Ethyl Acetate (23°C) | Probably Resistant |
| Other | Ethylene Glycol (50% by mass) in water (108°C) | Not Recommended |
| Other | Hydrogen peroxide (23°C) | Not Recommended |
| Other | Phenol solution (5% by mass) (23°C) | Not Recommended |
| Other | Water (23°C) | Probably Resistant |
| Other | Water (90°C) | Not Recommended |
| Salt solutions | Sodium Carbonate solution (2% by mass) (23°C) | Not Recommended |
| Salt solutions | Sodium Carbonate solution (20% by mass) (23°C) | Not Recommended |
| Salt solutions | Sodium Chloride solution (10% by mass) (23°C) | Probably Resistant |
| Salt solutions | Sodium Hypochlorite solution (10% by mass) (23°C) | Not Recommended |
| Salt solutions | Zinc Chloride solution (50% by mass) (23°C) | Not Recommended |
| Standard Fuels | Diesel EN 590 (100°C) | Not Recommended |
| Standard Fuels | Diesel fuel (pref. ISO 1817 Liquid F) (>90°C) | Not Recommended |
| Standard Fuels | Diesel fuel (pref. ISO 1817 Liquid F) (23°C) | Probably Resistant |
| Standard Fuels | Diesel fuel (pref. ISO 1817 Liquid F) (90°C) | Not Recommended |
| Standard Fuels | ISO 1817 Liquid 1 - E5 (60°C) | Probably Resistant |
| Standard Fuels | ISO 1817 Liquid 2 - M15E4 (60°C) | Probably Resistant |
| Standard Fuels | ISO 1817 Liquid 3 - M3E7 (60°C) | Probably Resistant |
| Standard Fuels | ISO 1817 Liquid 4 - M15 (60°C) | Probably Resistant |
| Standard Fuels | Standard fuel with alcohol (pref. ISO 1817 Liquid 4) (23°C) | Probably Resistant |
| Standard Fuels | Standard fuel without alcohol (pref. ISO 1817 Liquid C) (23°C) | Probably Resistant |
Regulatory & Compliance
Certifications & Compliance
OEM Standards
Technical Details & Test Data

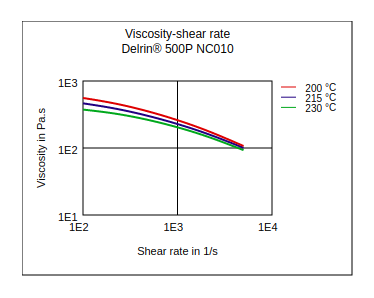

Viscosity vs Shear Rate
Shear Stress vs Shear Rate

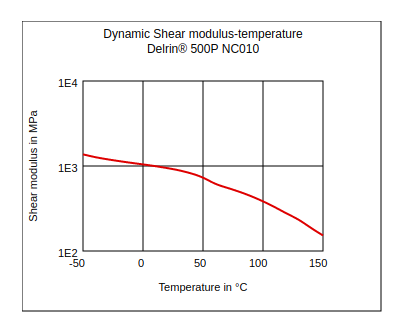

Dynamic Shear Modulus vs Temperature

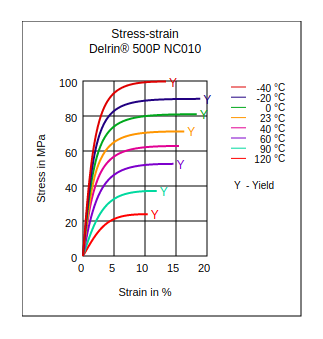

Stress vs Strain

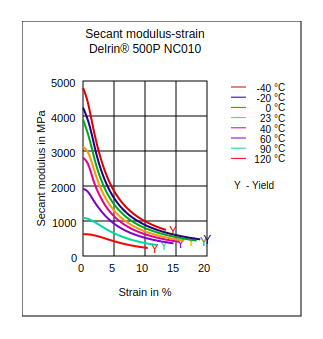

Secant Modulus vs Strain

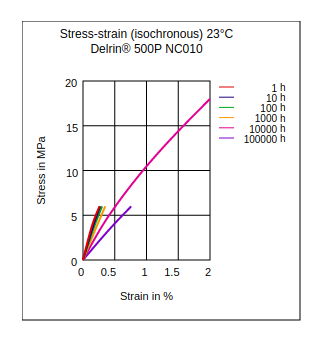

Stress vs Strain (Isochronous, 23°C)
Creep Modulus vs Time (23°C)
Specific Volume Temperature (pvT)
Coefficient of Linear Thermal Expansion

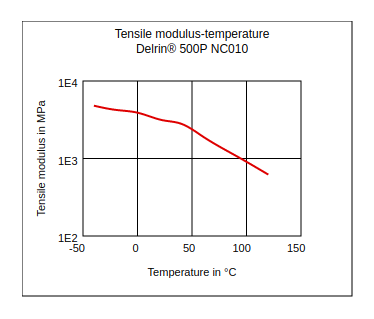

Tensile Modulus vs Temperature
Packaging & Availability
Country Availability
Regional Availability
Delrin® 500P NC010
DuPont
