Delrin 500T NC010 - DuPont - POM Homopolymer

Polymer Name: Polyacetal Homopolymer (POM)

Processing Methods: Injection Molding

Additives Included: Mold Release Agent, Lubricant (Unspecified)

Flexural Modulus: 2100.0 MPa

Start Order

Secure

Order Quantity

Price

Available upon quote

Minimum Order Quantity

Quote required

Lead Time

Quote required

Available Incoterms

Quote required

Regional Availability

View

Delrin® 300TE BK602 Polyacetals Other Industrial Applications, Other Consumer Goods Applications, Other Automotive Applications, Sensors & Actuators, Safety Systems

Delrin® 500AL NC010 Polyacetals Other Industrial Applications, Other Consumer Goods Applications, Other Automotive Applications, Powertrain & UTH, Automotive Electronics, Other Devices & Assemblies, Sensors & Actuators, Safety Systems

Delrin® 570 NC000 Polyacetals Other Automotive Applications

Documents

TypeDocument Name

Brochure

Technology Profile Laser Welding

Brochure

Other

Hot Runner Manual for Robust Molding of Semi-crystalline Resins

Other

Brochure

DuPont Performance Polymers - Self Tapping Screws

Brochure

Other

Delrin® acetal resin Molding Guide

Other

Safety Restraint Systems

Other

Brochure

Electrical/Electronic Thermoplastic Encapsulation

Brochure

Delrin® E-Grades for Low Emissions

Brochure

Other

Delrin® Acetal Homopolymer Resin Molding Tips

Other

Delrin® vs Acetal Copolymer White Paper

Other

Delrin® Design Guide-Module III

Other

Technical Data Sheet

Delrin® 500T NC010 Technical Data Sheet

Technical Data Sheet

Other

General Design Principles - Module I: Chapter 8

Other

See All Documents

Knowde Enhanced TDS

Expand All

Identification & Functionality

Additives Included

Lubricant (Unspecified),

Mold Release Agent

Polymer Name

Polyacetal Homopolymer (POM)

Plastics & Elastomers Functions

Resin

Technologies

Plastics

Product Families

Plastics — Engineering & Specialty Polymers

Polyacetals

Delrin® 500T NC010 Features & Benefits

Materials Features

Applications & Uses

Markets

Automotive & Transportation,

Building & Construction,

Consumer Goods,

Electrical & Electronics,

Healthcare & Pharma,

Industrial

Applications

Plastics & Elastomers End Uses

Automotive Applications,

Automotive Safety,

Automotive Safety Pushbutton,

Automotive Safety Retractor,

Safety Equipment,

Safety Restrain System,

Tubing

Plastics & Elastomers Processing Methods

Injection Molding

Properties

Color

Flame Rating

Physical Form

Part Marking Code

>POM-I<

Mechanical Properties


	Value	Units	Test Method / Conditions
Tensile Modulus	2300	MPa	ISO 527-1/-2
Yield Stress	55	MPa	ISO 527-1/-2
Yield Strain	18	%	ISO 527-1/-2
Flexural Modulus	2100	MPa	ISO 178
Nominal Strain (at Break)	35	%	ISO 527-1/-2
Flexural Stress (at 3.5%)	60	MPa	ISO 178
Tensile Creep Modulus (1h)	2300	MPa	ISO 899-1
Ball Indentation Hardness (H 961/30)	155	MPa	ISO 2039-1
Tensile Creep Modulus (1000h)	1200	MPa	ISO 899-1
Poisson's Ratio	0.39	-	-
Charpy Impact Strength (at 23°C)	N	kJ/m²	ISO 179/1eU
Charpy Impact Strength (at -30°C)	330	kJ/m²	ISO 179/1eU
Notched Charpy Impact Strength (at 23°C)	13	kJ/m²	ISO 179/1eA
Notched Charpy Impact Strength (at -30°C)	8.5	kJ/m²	ISO 179/1eA
Notched Izod Impact Strength (at 23°C)	14	kJ/m²	ISO 180/1A
Notched Izod Impact Strength (at -40°C)	9	kJ/m²	ISO 180/1A
Hardness (Rockwell Scale M)	79	-	ISO 2039-2
Hardness (Rockwell Scale R)	117	-	ISO 2039-2

Typical Properties


	Value	Units	Test Method / Conditions
Resin Identification	POM-I	-	ISO 1043

Thermal Properties


	Value	Units	Test Method / Conditions
Melt Temperature (at 10°C/min)	178	°C	ISO 11357-1/-3
Temperature of Deflection Under Load (1.8 Mpa)	80	°C	ISO 75-1/-2
Temperature of Deflection Under Load (0.45 Mpa)	145	°C	ISO 75-1/-2
Vicat Softening Temperature (at 50°C/H 50N)	140	°C	ISO 306
Vicat Softening Temperature (at 50°C/H 10N)	172	°C	ISO 306
Coefficient of Linear Thermal Expansion (Parallel)	130	E-6/K	ISO 11359-1/-2
Coefficient of Linear Thermal Expansion (Normal)	120	E-6/K	ISO 11359-1/-2
Relative Thermal Index (Electrical, 0.75mm)	105	°C	UL 746B
Relative Thermal Index (Electrical, 1.5mm)	105	°C	UL 746B
Relative Thermal Index (Electrical, 3mm)	105	°C	UL 746B
Relative Thermal Index (Impact, 0.75mm)	85	°C	UL 746B
Relative Thermal Index (Impact, 1.5mm)	85	°C	UL 746B
Relative Thermal Index (Impact, 3mm)	85	°C	UL 746B
Relative Thermal Index (Strength, 0.75mm)	85	°C	UL 746B
Relative Thermal Index (Strength, 1.5mm)	85	°C	UL 746B
Relative Thermal Index (Strength, 3mm)	85	°C	UL 746B
TGA curve	available	-	ISO 11359-1/-2

Electrical Properties


	Value	Units	Test Method / Conditions
Surface Resistivity	1000000000000000	Ohm	IEC 62631-3-2
Relative Permittivity (at 100Hz)	3.6	-	IEC 62631-2-1
Relative Permittivity (at 1MHz)	3.6	-	IEC 62631-2-1
Dissipation Factor (at 1 MHz)	160	E-4	IEC 62631-2-1
Comparative Tracking Index	600	-	IEC 60112
Volume Resistivity	min. 1E13	Ohm.m	IEC 62631-3-1

Flammability


	Value	Units	Test Method / Conditions
FMVSS Class	B	-	ISO 3795 (FMVSS 302)
Burning Behavior (at 1.5mm Nominal Thickness)	UL94 HB	class	IEC 60695-11-10
Burning Behavior (at 0.75mm Thickness)	UL94 HB	class	IEC 60695-11-10
Glow Wire Flammability Index (at 1mm)	550	°C	IEC 60695-2-12
Glow Wire Flammability Index (at 2mm)	550	°C	IEC 60695-2-12
Glow Wire Flammability Index (at 3mm)	550	°C	IEC 60695-2-12
Burning Rate (at 1mm Thickness)	45	mm/min	ISO 3795 (FMVSS 302)

Other Properties


	Value	Units	Test Method / Conditions
Humidity Absorption (at 2mm)	0.21	%	Sim. to ISO 62
Water Absorption (at 2mm)	0.82	%	Sim. to ISO 62
Water Absorption (Immersion 24h)	0.3	%	Sim. to ISO 62
Density	1380	kg/m³	ISO 1183
Density of Melt	1180	kg/m³	-

Processing Information (Injection Molding)


	Value	Units	Test Method / Conditions
Drying Recommended	yes	-	-
Drying Temperature	80	°C	-
Drying Time (Dehumidified Dryer)	4 - 8	h	-
Processing Moisture Content	max. 0.05	%	-
Hold Pressure Range	60 - 80	MPa	-
Hold Pressure Time	7.5	s/mm	-
Annealing Temperature	160	°C	-
Melt Temperature (Optimum)	205	°C	-
Melt Temperature (Minimum)	200	°C	-
Melt Temperature (Maximum)	210	°C	-
Maximum Screw Tangential Speed	0.3	m/s	-
Mold Temperature (Optimum)	50	°C	-
Mold Temperature (Minimum)	40	°C	-
Mold Temperature (Maximum)	60	°C	-
Annealing Time (Optional)	30	min/mm	-

VDA Properties


	Value	Units	Test Method / Conditions
Fogging (G-Value, Condensate)	0.2	mg	ISO 6452
Emissions	max. 8	mg/kg	VDA 275

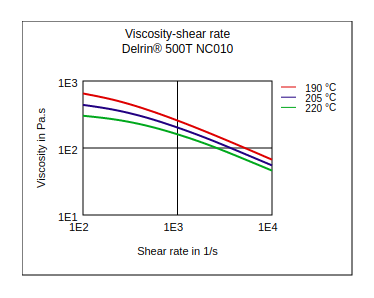

Rheological Properties


	Value	Units	Test Method / Conditions
Melt Volume-Flow Rate (at 190°C, 2.16 kg)	10	cm³/10min	ISO 1133
Melt Mass Flow Rate (at 190°C, 2.16 kg)	12	g/10min	ISO 1133
Mold Shrinkage (Parallel)	1.5	%	ISO 294-4, 2577
Mold Shrinkage (Normal)	1.6	%	ISO 294-4, 2577
