Delrin® 570 NC000

Sold by DuPont
Polymer Name: Polyacetal Homopolymer (POM)
Processing Methods: Injection Molding
Fillers Included: Glass Fiber
Additives Included: Mold Release Agent
Flexural Modulus: 4600.0 MPa
Start Order
Secure
Order Quantity
Price
Available upon quote
Minimum Order Quantity
Quote required
Lead Time
Quote required
Available Incoterms
Quote required
Regional Availability
View
TypeDocument Name
Brochure
Technology Profile Laser Welding
Technology Profile Laser Welding
Brochure
Other
Hot Runner Manual for Robust Molding of Semi-crystalline Resins
Hot Runner Manual for Robust Molding of Semi-crystalline Resins
Other
Brochure
DuPont Performance Polymers - Self Tapping Screws
DuPont Performance Polymers - Self Tapping Screws
Brochure
Other
Delrin® acetal resin Molding Guide
Delrin® acetal resin Molding Guide
Other
Other
Safety Restraint Systems
Safety Restraint Systems
Other
Brochure
Electrical/Electronic Thermoplastic Encapsulation
Electrical/Electronic Thermoplastic Encapsulation
Brochure
Brochure
Delrin® E-Grades for Low Emissions
Delrin® E-Grades for Low Emissions
Brochure
Other
Delrin® Acetal Homopolymer Resin Molding Tips
Delrin® Acetal Homopolymer Resin Molding Tips
Other
Technical Data Sheet
Delrin® 570 NC000 Technical Data Sheet
Delrin® 570 NC000 Technical Data Sheet
Technical Data Sheet
Other
Delrin® Design Guide-Module III
Delrin® Design Guide-Module III
Other
Other
General Design Principles - Module I: Chapter 8
General Design Principles - Module I: Chapter 8
Other
Other
Delrin® vs Acetal Copolymer White Paper
Delrin® vs Acetal Copolymer White Paper
Other

Knowde Enhanced TDS

Expand All

+

Identification & Functionality

Additives Included
Fillers Included
Plastics & Elastomers Functions
Technologies

Delrin® 570 NC000 Features & Benefits

Applications & Uses

Properties

Color
Flame Rating
Physical Form
Part Marking Code
>POM-GF20<
Mechanical Properties
ValueUnitsTest Method / Conditions
Tensile Modulus4900MPaISO 527-1/-2
Flexural Modulus4600MPaISO 178
Stress (at Break)53MPaISO 527-1/-2
Ball Indentation Hardness (H 961/30)160MPaISO 2039-1
Strain (at Break)12%ISO 527-1/-2
Poisson's Ratio0.35--
Charpy Impact Strength (at 23°C)54kJ/m²ISO 179/1eU
Charpy Impact Strength (at -30°C)50kJ/m²ISO 179/1eU
Notched Charpy Impact Strength (at 23°C)3.5kJ/m²ISO 179/1eA
Notched Charpy Impact Strength (at -30°C)3kJ/m²ISO 179/1eA
Notched Izod Impact Strength (at 23°C)6kJ/m²ISO 180/1A
Typical Properties
ValueUnitsTest Method / Conditions
Resin IdentificationPOM-GF20-ISO 1043
Thermal Properties
ValueUnitsTest Method / Conditions
Melt Temperature (at 10°C/min)178°CISO 11357-1/-3
Temperature of Deflection Under Load (1.8 Mpa)125°CISO 75-1/-2
Temperature of Deflection Under Load (0.45 Mpa)165°CISO 75-1/-2
Vicat Softening Temperature (at 50°C/H 50N)160°CISO 306
Coefficient of Linear Thermal Expansion (Parallel)60E-6/KISO 11359-1/-2
Coefficient of Linear Thermal Expansion (Normal)85E-6/KISO 11359-1/-2
Relative Thermal Index (Electrical, 1.5mm)105°CUL 746B
Relative Thermal Index (Electrical, 3mm)105°CUL 746B
Relative Thermal Index (Electrical, 6mm)105°CUL 746B
Relative Thermal Index (Impact, 1.5mm)85°CUL 746B
Relative Thermal Index (Impact, 3mm)85°CUL 746B
Relative Thermal Index (Impact, 6mm)85°CUL 746B
Relative Thermal Index (Strength, 1.5mm)90°CUL 746B
Relative Thermal Index (Strength, 3mm)90°CUL 746B
Relative Thermal Index (Strength, 6mm)90°CUL 746B
TGA curveavailable-ISO 11359-1/-2
Electrical Properties
ValueUnitsTest Method / Conditions
Surface Resistivitymin. 1E15OhmIEC 62631-3-2
Relative Permittivity (at 100Hz)3.9-IEC 62631-2-1
Relative Permittivity (at 1MHz)3.9-IEC 62631-2-1
Dissipation Factor (at 1 MHz)50E-4IEC 62631-2-1
Comparative Tracking Index600-IEC 60112
Volume Resistivity10000000000000Ohm.mIEC 62631-3-1
Flammability
ValueUnitsTest Method / Conditions
FMVSS ClassB-ISO 3795 (FMVSS 302)
Burning Behavior (at 1.5mm Nominal Thickness)UL94 HBclassIEC 60695-11-10
Burning Behavior (at 3mm Thickness)UL94 HBclassIEC 60695-11-10
Glow Wire Flammability Index (at 3mm)600°CIEC 60695-2-12
Burning Rate (at 1mm Thickness)53mm/minISO 3795 (FMVSS 302)
Other Properties
ValueUnitsTest Method / Conditions
Humidity Absorption (at 2mm)0.1%Sim. to ISO 62
Water Absorption (at 2mm)0.8%Sim. to ISO 62
Density1560kg/m³ISO 1183
Processing Information (Injection Molding)
ValueUnitsTest Method / Conditions
Drying Recommendedyes--
Drying Temperature80°C-
Drying Time (Dehumidified Dryer)2 - 4h-
Processing Moisture Contentmax. 0.2%-
Hold Pressure Range80 - 100MPa-
Hold Pressure Time8s/mm-
Annealing Temperature160°C-
Melt Temperature (Optimum)215°C-
Melt Temperature (Minimum)210°C-
Melt Temperature (Maximum)220°C-
Maximum Screw Tangential Speed0.3m/s-
Mold Temperature (Optimum)90°C-
Mold Temperature (Minimum)80°C-
Mold Temperature (Maximum)100°C-
Annealing Time (Optional)30min/mm-
VDA Properties
ValueUnitsTest Method / Conditions
Fogging (G-Value, Condensate)0.5mgISO 6452
Rheological Properties
ValueUnitsTest Method / Conditions
Melt Volume-Flow Rate (at 190°C, 2.16 kg)7cm³/10minISO 1133
Mold Shrinkage (Parallel)1.8%ISO 294-4, 2577
Mold Shrinkage (Normal)1.2%ISO 294-4, 2577

Regulatory & Compliance

Certifications & Compliance
OEM Specifications
OEM Standards

Technical Details & Test Data

Viscosity vs Shear Rate

DuPont Delrin 570 NC000 Viscosity vs Shear Rate

Shear Stress vs Shear Rate

DuPont Delrin 570 NC000 Shear Stress vs Shear Rate

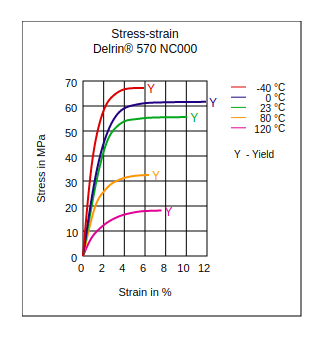

Stress vs Strain

DuPont Delrin 570 NC000 Stress vs Strain

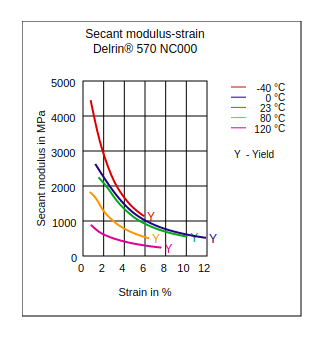

Secant Modulus vs Strain

DuPont Delrin 570 NC000 Secant Modulus vs Strain

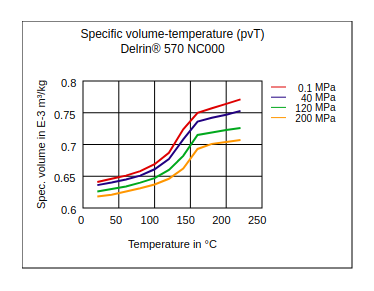

Specific Volume Temperature (pvT)

DuPont Delrin 570 NC000 Specific Volume Temperature (pvT)
