Delrin® 900P NC010

Sold by DuPont
Polymer Name: Polyacetal Homopolymer (POM)
Processing Methods: Injection Molding
Additives Included: Mold Release Agent, Lubricant (Unspecified)
Flexural Modulus: 3000.0 MPa
Start Order
Secure
Order Quantity
Price
Available upon quote
Minimum Order Quantity
Quote required
Lead Time
Quote required
Available Incoterms
Quote required
Regional Availability
Quote required
Similar Products from DuPont NEW

Knowde Enhanced TDS

Expand All

+

Identification & Functionality

Delrin® 900P NC010 Features & Benefits

Applications & Uses

Properties

Mechanical Properties
ValueUnitsTest Method / Conditions
Tensile Modulus3200MPaISO 527
Hardness, Rockwell120Scale RISO 2039-2
Hardness, Rockwell92Scale MISO 2039-2
Yield Stress71MPaISO 527-1/-2
Yield Strain12%ISO 527-1/-2
Nominal Strain at Break23%ISO 527-1/-2
Flexural Modulus3000MPaASTM D 790
Tensile Creep Modulus (1 h)2800MPaISO 899-1
Tensile Creep Modulus (1000 h)1500MPaISO 899-1
Charpy Impact Strength (23°C)200kJ/m2ISO 179/1eU
Charpy Impact Strength (-30°C)200kJ/m2ISO 179/1eU
Charpy Notched Impact Strength (23°C)7.5kJ/m2ISO 179/1eA
Charpy Notched Impact Strength (-30°C)6.5kJ/m2ISO 179/1eA
Izod Notched Impact Strength (23°C)7kJ/m2ISO 180/1A
Izod Notched Impact Strength (-40°C)8kJ/m2ISO 180/1A
Ball Indentation Hardness (H 961/30)170MPaISO 2039-1
Poisson's Ratio0.37-ASTM D638
Coefficient of Sliding Friction (1h, Against Itself)0.25-ASTM 1894
Physical Properties
ValueUnitsTest Method / Conditions
Melt Volume - Flow Rate21cm³/10minISO 1133
Melt Mass Flow Rate - MFR (190°C/2.16 kg)25g/10 minASTM D1238
Load2.16kgISO 1133
Molding Shrinkage - Parallel1.9%ISO 294-4, 2577
Molding Shrinkage - Normal1.9%ISO 294-4, 2577
Temperature190°CISO 1133
Thermal Properties
ValueUnitsTest Method / Conditions
Melting Temperature (10°C/min)178°CISO 11357-1/-3
Temperature of Deflection Under Load(1.8 MPa)94°CISO 75-1/-2
Temperature of Deflection Under Load (0.45 MPa)162°CISO 75-1/-2
Vicat Softening Temperature (50°C/h, 50N)160°CISO 306
Coefficient of Linear Thermal Expansion - Parallel120E-6/KISO 11359-1/-2
Coefficient of Linear Thermal Expansion - Normal120E-6/KISO 11359-1/-2
Relative Temperature Index - Electrical (0.75 mm)50°CUL 746B
Relative Temperature Index - Electrical (1.5 mm)110°CUL 746B
Relative Temperature Index - Electrical (3 mm)110°CUL 746B
Relative Temperature Index - Impact (0.75 mm)50°CUL 746B
Relative Temperature Index - Impact (1.5 mm)85°CUL 746B
Relative Temperature Index - Impact (3 mm)90°CUL 746B
Relative Temperature Index - Strength (0.75 mm)50°CUL 746B
Relative Temperature Index - Strength (1.5 mm)90°CUL 746B
Relative Temperature Index - Strength (3 mm)95°CUL 746B
Effective Thermal Diffusivity8E-8m²/s-
Electrical Properties
ValueUnitsTest Method / Conditions
Relative Permittivity (100 Hz)3.8-ASTM D 150
Relative Permittivity (1 MHz)3.8-IEC 60250
Dissipation Factor (1 MHz)50E-4IEC 62631-2-1
Surface Resistivity>1E15ohmIEC 60093
Comparative Tracking Index - CTI600VUL 746
Volume Resistivity1E12ohm.mIEC 62631-3-1
Flammability
ValueUnitsTest Method / Conditions
Burning Behaviour (1.5 mm, Nominal Thickness)HBclassIEC 60695-11-10
Burning Behaviour (Thickness h)HBclassIEC 60695-11-10
Oxygen Index23%ISO 4589-2
Glow Wire Flammability Index - GWFI (1 mm)550°CIEC 60695-2-12
Glow Wire Flammability Index - GWFI (2 mm)550°CIEC 60695212
Glow Wire Flammability Index - GWFI (3 mm)550°CIEC 60695-2-12
FMVSS ClassB-ISO 3795 (FMVSS 302)
Burning Rate (1 mm, Thickness)20mm/minISO 3795 (FMVSS 302)
Hot Wire Ignition (0.75 mm)81sUL 746A
Ul RecognitionYes-UL 94
Thickness Tested1.5mmIEC 60695-11-10
Other Properties
ValueUnitsTest Method / Conditions
Humidity Absorption (2 mm)0.4%Sim. to ISO 62
Water Absorption (2 mm)1.4%Sim. to ISO 62
Density1420kg/m³ISO 1183
Processing Information (Injection Molding)
ValueUnitsTest Method / Conditions
Drying RecommendedYes--
Drying Temperature80°C-
Drying Time (Dehumidified Dryer)2.0 - 4.0h-
Processing Moisture Content≤0.2%-
Melt Temperature Optimum215°C-
Min. Melt Temperature210°C-
Max. Melt Temperature220°C-
Mold Temperature Optimum90°C-
Min. Mold Temperature80°C-
Max. Mold Temperature100°C-
Hold Pressure Range80 - 100MPa-
Hold Pressure Time8s/mm-
Annealing Time - Optional30min/mm-
Annealing Temperature160°C-
VDA Properties
ValueUnitsTest Method / Conditions
Fogging - F Value (Refraction)95%ISO 6452
Fogging, G - Value (Condensate)0.2mgISO 6452
Emissionsmax. 8mg/100g/kg/100gVDA 275
Chemical Resistance
Chemical Type Chemical Name Resistance
Acids Acetic Acid (5% by mass) (23°C) Probably Resistant
Acids Chromic Acid solution (40% by mass) (23°C) Not Recommended
Acids Citric Acid solution (10% by mass) (23°C) Not Recommended
Acids Hydrochloric Acid (36% by mass) (23°C) Not Recommended
Acids Lactic Acid (10% by mass) (23°C) Not Recommended
Acids Nitric Acid (40% by mass) (23°C) Not Recommended
Acids Sulfuric Acid (38% by mass) (23°C) Not Recommended
Acids Sulfuric Acid (5% by mass) (23°C) Not Recommended
Alcohols Ethanol (23°C) Probably Resistant
Alcohols Isopropyl alcohol (23°C) Probably Resistant
Alcohols Methanol (23°C) Probably Resistant
Bases Ammonium Hydroxide solution (10% by mass) (23°C) Not Recommended
Bases Sodium Hydroxide solution (1% by mass) (23°C) Not Recommended
Bases Sodium Hydroxide solution (35% by mass) (23°C) Not Recommended
Ethers Diethyl ether (23°C) Probably Resistant
Hydrocarbons iso-Octane (23°C) Probably Resistant
Hydrocarbons n-Hexane (23°C) Probably Resistant
Hydrocarbons Toluene (23°C) Probably Resistant
Ketones Acetone (23°C) Probably Resistant
Mineral oils Insulating Oil (23°C) Probably Resistant
Mineral oils SAE 10W40 multigrade motor oil (130°C) Not Recommended
Mineral oils SAE 10W40 multigrade motor oil (23°C) Probably Resistant
Mineral oils SAE 80/90 hypoid-gear oil (130°C) Not Recommended
Other 1% nonylphenoxy-polyethyleneoxy ethanol in water (23°C) Probably Resistant
Other 50% Oleic acid + 50% Olive Oil (23°C) Probably Resistant
Other DOT No. 4 Brake fluid (130°C) Not Recommended
Other Ethyl Acetate (23°C) Probably Resistant
Other Ethylene Glycol (50% by mass) in water (108°C) Not Recommended
Other Hydrogen peroxide (23°C) Not Recommended
Other Phenol solution (5% by mass) (23°C) Not Recommended
Other Water (23°C) Probably Resistant
Other Water (90°C) Not Recommended
Salt solutions Sodium Carbonate solution (2% by mass) (23°C) Not Recommended
Salt solutions Sodium Carbonate solution (20% by mass) (23°C) Not Recommended
Salt solutions Sodium Chloride solution (10% by mass) (23°C) Probably Resistant
Salt solutions Sodium Hypochlorite solution (10% by mass) (23°C) Not Recommended
Salt solutions Zinc Chloride solution (50% by mass) (23°C) Not Recommended
Standard Fuels Diesel fuel (pref. ISO 1817 Liquid F) (>90°C) Not Recommended
Standard Fuels Diesel fuel (pref. ISO 1817 Liquid F) (23°C) Probably Resistant
Standard Fuels Diesel fuel (pref. ISO 1817 Liquid F) (90°C) Not Recommended
Standard Fuels ISO 1817 Liquid 1 - E5 (60°C) Probably Resistant
Standard Fuels ISO 1817 Liquid 2 - M15E4 (60°C) Probably Resistant
Standard Fuels ISO 1817 Liquid 3 - M3E7 (60°C) Probably Resistant
Standard Fuels ISO 1817 Liquid 4 - M15 (60°C) Probably Resistant
Standard Fuels Standard fuel with alcohol (pref. ISO 1817 Liquid 4) (23°C) Probably Resistant
Standard Fuels Standard fuel without alcohol (pref. ISO 1817 Liquid C) (23°C) Probably Resistant

Regulatory & Compliance

Certifications & Compliance
Compliance
UL Flame Rated

Technical Details & Test Data

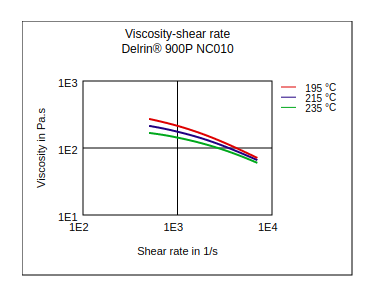

Viscosity vs Shear Rate

DuPont Delrin 900P NC010 Viscosity vs Shear Rate

Shear Stress vs Shear Rate

DuPont Delrin 900P NC010 Shear Stress vs Shear Rate

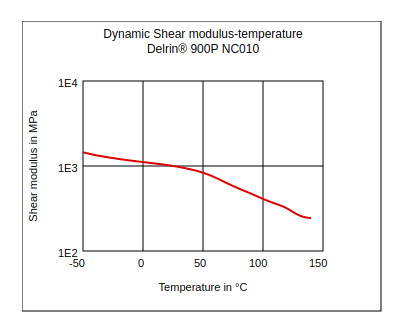

Dynamic Shear Modulus vs Temperature

DuPont Delrin 900P NC010 Dynamic Shear Modulus vs Temperature

Stress vs Strain

DuPont Delrin 900P NC010 Stress vs Strain

Secant Modulus vs Strain

DuPont Delrin 900P NC010 Secant Modulus vs Strain

Specific Volume Temperature (pvT)

DuPont Delrin 900P NC010 Specific Volume Temperature (pvT)
