Common features of Delrin® acetal resins include mechanical and physical properties such as high mechanical strength and rigidity, excellent fatigue and impact resistance, as well as resistance to moisture, gasoline, lubricants, solvents, and many other neutral chemicals. Delrin® acetal resins also have excellent dimensional stability and good electrical insulating characteristics. They are naturally resilient, self-lubricating, and available in a variety of colors and speciality grades. Delrin® acetal resin typically is used in demanding applications in the automotive, domestic appliances, sports, industrial engineering, electronics, and consumer goods industries. Delrin® FG111DP is a high viscosity acetal homopolymer with enhanced crystallization for faster cycle times and excellent creep and fatigue resistance. It has improved thermal stability, excellent dimensional stability, low warpage, and fewer voids. It has been developed for applications in contact with food.
Polymer Name: Polyacetal Homopolymer (POM)
Processing Methods: Injection Molding, Extrusion
Additives Included: Mold Release Agent, Lubricant (Unspecified)
Flexural Modulus: 3000.0 MPa
Start Order
SecureOrder Quantity
Price
Available upon quote
Minimum Order Quantity
Quote required
Lead Time
Quote required
Available Incoterms
Quote required
Regional Availability
Quote required
Popular DuPont Products
View All DuPont Products Delrin® 300TE BK602
Delrin® 500AL NC010
Delrin® 570 NC000
Knowde Enhanced TDS
Identification & Functionality
Additives Included
Polymer Name
Plastics & Elastomers Functions
Technologies
Product Families
Delrin® FG111DP NC010 Features & Benefits
Applications & Uses
Markets
Applications
Plastics & Elastomers End Uses
Plastics & Elastomers Processing Methods
Processing Notes
Injection Molding
Drying is recommended, but not necessary for newly opened packaging stored in a dry location.
Follow the drying guidelines above in the following cases
- If moisture is above the Processing Moisture Content recommendation,
- When a resin container is damaged,
- When the material is not properly stored in a dry place at room temperature, or
- When packaging stays open for a significant time.
Properties
Chemical Resistance
Mechanical Properties
| Value | Units | Test Method / Conditions | |
| Nominal Strain (at Break) | 40 | % | ISO 527-1/-2 |
| Charpy Impact Strength (at 23°C) | N | kJ/m² | ISO 179/1eU |
| Charpy Impact Strength (at -30°C) | 340 | kJ/m² | ISO 179/1eU |
| Notched Charpy Impact Strength (at 23°C) | 11 | kJ/m² | ISO 179/1eA |
| Notched Charpy Impact Strength (at -30°C) | 9.5 | kJ/m² | ISO 179/1eA |
| Notched Charpy Impact Strength (at -40°C) | 10 | kJ/m² | ISO 179/1eA |
| Hardness (Rockwell Scale M) | 94 | - | ISO 2039-2 |
| Hardness (Rockwell Scale R) | 122 | - | ISO 2039-2 |
| Tensile Creep Modulus (1000h) | 1100 | MPa | ISO 899-1 |
| Tensile Creep Modulus (1h) | 2300 | MPa | ISO 899-1 |
| Yield Stress | 72 | MPa | ISO 527-1/-2 |
| Yield Strain | 20 | % | ISO 527-1/-2 |
| Poisson's Ratio | 0.37 | - | - |
| Flexural Modulus | 3000 | MPa | ISO 178 |
| Tensile Modulus | 3200 | MPa | ISO 527-1/-2 |
Thermal Properties
| Value | Units | Test Method / Conditions | |
| Melt Temperature (at 10°C/min) | 178 | °C | ISO 11357-1/-3 |
| Coefficient of Linear Thermal Expansion (Parallel) | 100 | E-6/K | ISO 11359-1/-2 |
| Coefficient of Linear Thermal Expansion (Normal) | 100 | E-6/K | ISO 11359-1/-2 |
| Relative Thermal Index (Electrical, 0.75mm) | 50 | °C | UL 746B |
| Relative Thermal Index (Electrical, 1.5mm) | 110 | °C | UL 746B |
| Relative Thermal Index (Electrical, 3mm) | 110 | °C | UL 746B |
| Relative Thermal Index (Impact, 0.75mm) | 50 | °C | UL 746B |
| Relative Thermal Index (Impact, 1.5mm) | 85 | °C | UL 746B |
| Relative Thermal Index (Impact, 3mm) | 90 | °C | UL 746B |
| Relative Thermal Index (Strength, 0.75mm) | 50 | °C | UL 746B |
| Relative Thermal Index (Strength, 1.5mm) | 90 | °C | UL 746B |
| Relative Thermal Index (Strength, 3mm) | 95 | °C | UL 746B |
| Temperature of Deflection Under Load (0.45 Mpa) | 165 | °C | ISO 75-1/-2 |
| Specific Heat Capacity of Melt | 3000 | J/(kg K) | - |
| Temperature of Deflection Under Load (1.8 Mpa) | 98 | °C | ISO 75-1/-2 |
Flammability
| Value | Units | Test Method / Conditions | |
| Burning Behavior (at 1.5mm Nominal Thickness) | UL94 HB | class | IEC 60695-11-10 |
| Burning Behavior (at 0.8mm Thickness) | UL94 HB | class | IEC 60695-11-10 |
| Burning Rate (at 1mm Thickness) | 25 | mm/min | ISO 3795 (FMVSS 302) |
| FMVSS Class | B | - | ISO 3795 (FMVSS 302) |
Other Properties
| Value | Units | Test Method / Conditions | |
| Density | 1420 | kg/m³ | ISO 1183 |
| Density of Melt | 1160 | kg/m³ | - |
Processing Information (Extrusion)
| Value | Units | Test Method / Conditions | |
| Melt Temperature (Optimum) | 200 | °C | - |
| Drying Time (Dehumidified Dryer) | 2 - 4 | h | - |
| Melt Temperature Range | 195 - 205 | °C | - |
| Drying Temperature | 75 - 85 | °C | - |
| Processing Moisture Content | max. 0.2 | % | - |
Processing Information (Injection Molding)
| Value | Units | Test Method / Conditions | |
| Melt Temperature (Optimum) | 215 | °C | - |
| Melt Temperature (Minimum) | 210 | °C | - |
| Melt Temperature (Maximum) | 220 | °C | - |
| Maximum Screw Tangential Speed | 0.2 | m/s | - |
| Mold Temperature (Optimum) | 90 | °C | - |
| Mold Temperature (Minimum) | 80 | °C | - |
| Mold Temperature (Maximum) | 100 | °C | - |
| Annealing Time (Optional) | 30 | min/mm | - |
| Drying Temperature | 80 | °C | - |
| Annealing Temperature | 160 | °C | - |
| Drying Time (Dehumidified Dryer) | 2 - 4 | h | - |
| Hold Pressure Range | 90 - 110 | MPa | - |
| Hold Pressure Time | 7.5 | s/mm | - |
| Drying Recommended | yes | - | - |
| Processing Moisture Content | max. 0.2 | % | - |
VDA Properties
| Value | Units | Test Method / Conditions | |
| Emissions | max. 8 | mg/kg | VDA 275 |
Rheological Properties
| Value | Units | Test Method / Conditions | |
| Melt Volume-Flow Rate (at 190°C, 2.16 kg) | 2.1 | cm³/10min | ISO 1133 |
| Melt Mass Flow Rate (at 190°C, 2.16 kg) | 2.4 | g/10min | ISO 1133 |
| Mold Shrinkage (Parallel) | 2.1 | % | ISO 294-4, 2577 |
| Mold Shrinkage (Normal) | 1.9 | % | ISO 294-4, 2577 |
Chemical Resistance
| Chemical Type | Chemical Name | Resistance |
| Acids | Acetic Acid (5% by mass) (23°C) | Probably Resistant |
| Acids | Chromic Acid solution (40% by mass) (23°C) | Not Recommended |
| Acids | Citric Acid solution (10% by mass) (23°C) | Not Recommended |
| Acids | Hydrochloric Acid (36% by mass) (23°C) | Not Recommended |
| Acids | Lactic Acid (10% by mass) (23°C) | Not Recommended |
| Acids | Nitric Acid (40% by mass) (23°C) | Not Recommended |
| Acids | Sulfuric Acid (38% by mass) (23°C) | Not Recommended |
| Acids | Sulfuric Acid (5% by mass) (23°C) | Not Recommended |
| Alcohols | Ethanol (23°C) | Probably Resistant |
| Alcohols | Isopropyl alcohol (23°C) | Probably Resistant |
| Alcohols | Methanol (23°C) | Probably Resistant |
| Bases | Ammonium Hydroxide solution (10% by mass) (23°C) | Not Recommended |
| Bases | Sodium Hydroxide solution (1% by mass) (23°C) | Not Recommended |
| Bases | Sodium Hydroxide solution (35% by mass) (23°C) | Not Recommended |
| Ethers | Diethyl ether (23°C) | Probably Resistant |
| Hydrocarbons | Toluene (23°C) | Probably Resistant |
| Hydrocarbons | iso-Octane (23°C) | Probably Resistant |
| Hydrocarbons | n-Hexane (23°C) | Probably Resistant |
| Ketones | Acetone (23°C) | Probably Resistant |
| Mineral oils | Insulating Oil (23°C) | Probably Resistant |
| Mineral oils | SAE 10W40 multigrade motor oil (23°C) | Probably Resistant |
| Mineral oils | SAE 10W40 multigrade motor oil, 130°C | Not Recommended |
| Mineral oils | SAE 80/90 hypoid-gear oil, 130°C | Not Recommended |
| Other | 1% nonylphenoxy-polyethyleneoxy ethanol in water (23°C) | Probably Resistant |
| Other | 50% Oleic acid + 50% Olive Oil (23°C) | Probably Resistant |
| Other | DOT No. 4 Brake fluid (130°C) | Not Recommended |
| Other | Ethyl Acetate (23°C) | Probably Resistant |
| Other | Ethylene Glycol (50% by mass in water)(108°C) | Not Recommended |
| Other | Hydrogen peroxide (23°C) | Not Recommended |
| Other | Phenol solution (5% by mass) (23°C) | Not Recommended |
| Other | Water (23°C) | Probably Resistant |
| Other | Water (90°C) | Not Recommended |
| Salt solutions | Sodium Carbonate solution (2% by mass) (23°C) | Not Recommended |
| Salt solutions | Sodium Carbonate solution (20% by mass) (23°C) | Not Recommended |
| Salt solutions | Sodium Chloride solution (10% by mass) (23°C) | Probably Resistant |
| Salt solutions | Sodium Hypochlorite solution (10% by mass) (23°C) | Not Recommended |
| Salt solutions | Zinc Chloride solution (50% by mass) (23°C) | Not Recommended |
| Standard Fuels | Diesel fuel (pref. ISO 1817 Liquid F) (90°C) | Not Recommended |
| Standard Fuels | Diesel fuel (pref. ISO 1817 Liquid F) (>90°C) | Not Recommended |
| Standard Fuels | Diesel fuel (pref. ISO 1817 Liquid F)( 23°C) | Probably Resistant |
| Standard Fuels | ISO 1817 Liquid 1 - E5 (60°C) | Probably Resistant |
| Standard Fuels | ISO 1817 Liquid 2 - M15E4 (60°C) | Probably Resistant |
| Standard Fuels | ISO 1817 Liquid 3 - M3E7 (60°C) | Probably Resistant |
| Standard Fuels | ISO 1817 Liquid 4 - M15 (60°C) | Probably Resistant |
| Standard Fuels | Standard fuel with alcohol (pref. ISO 1817 Liquid 4) (23°C) | Probably Resistant |
| Standard Fuels | Standard fuel without alcohol (pref. ISO 1817 Liquid C) (23°C) | Probably Resistant |
Regulatory & Compliance
Technical Details & Test Data
Secant Modulus-Strain

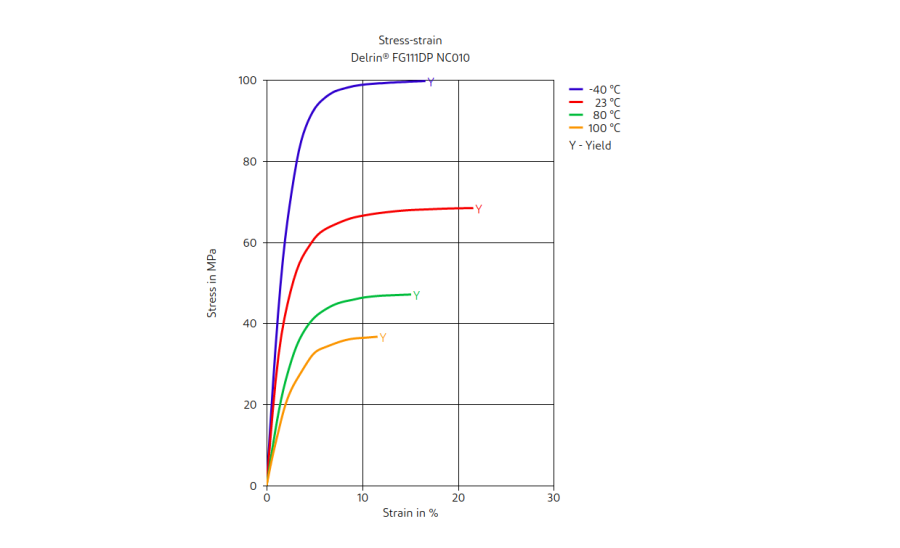

Stress-Strain
