Delrin® SC698 NC010

Sold by DuPont
Polymer Name: Polyacetal Homopolymer (POM)
Processing Methods: Injection Molding
Additives Included: Mold Release Agent
Flexural Modulus: 3000.0 MPa
Start Order
Secure
Order Quantity
Price
Available upon quote
Minimum Order Quantity
Quote required
Lead Time
Quote required
Available Incoterms
Quote required
Regional Availability
View
TypeDocument Name
Brochure
Technology Profile Laser Welding
Technology Profile Laser Welding
Brochure
Other
Hot Runner Manual for Robust Molding of Semi-crystalline Resins
Hot Runner Manual for Robust Molding of Semi-crystalline Resins
Other
Brochure
DuPont Performance Polymers - Self Tapping Screws
DuPont Performance Polymers - Self Tapping Screws
Brochure
Other
Delrin® acetal resin Molding Guide
Delrin® acetal resin Molding Guide
Other
Technical Data Sheet
Delrin® SC698 NC010 Technical Data Sheet
Delrin® SC698 NC010 Technical Data Sheet
Technical Data Sheet
Brochure
Electrical/Electronic Thermoplastic Encapsulation
Electrical/Electronic Thermoplastic Encapsulation
Brochure
Other
Safety Restraint Systems
Safety Restraint Systems
Other
Other
DuPont™ Delrin® Drives Productivity and Sustainability for High Speed Filling Lines
DuPont™ Delrin® Drives Productivity and Sustainability for High Speed Filling Lines
Other
Other
Delrin® vs Acetal Copolymer White Paper
Delrin® vs Acetal Copolymer White Paper
Other
Other
Delrin® Design Guide-Module III
Delrin® Design Guide-Module III
Other
Other
Delrin® SC698 NC010 Injection Data Sheet
Delrin® SC698 NC010 Injection Data Sheet
Other
Other
Delrin® SC698 NC010 Regulatory Information Sheet
Delrin® SC698 NC010 Regulatory Information Sheet
Other

Knowde Enhanced TDS

Expand All

+

Identification & Functionality

Additives Included
Plastics & Elastomers Functions
Technologies

Delrin® SC698 NC010 Features & Benefits

Applications & Uses

Properties

Physical Form
Part Marking Code
>POM<
Mechanical Properties
ValueUnitsTest Method / Conditions
Nominal Strain (at Break)20%ISO 527-1/-2
Charpy Impact Strength (at 23°C)150kJ/m²ISO 179/1eU
Charpy Impact Strength (at -30°C)150kJ/m²ISO 179/1eU
Notched Charpy Impact Strength (at 23°C)4kJ/m²ISO 179/1eA
Notched Charpy Impact Strength (at -30°C)4kJ/m²ISO 179/1eA
Yield Strain11%ISO 527-1/-2
Yield Stress65MPaISO 527-1/-2
Poisson's Ratio0.37--
Flexural Modulus3000MPaISO 178
Tensile Modulus3100MPaISO 527-1/-2
Typical Properties
ValueUnitsTest Method / Conditions
Resin IdentificationPOM-ISO 1043
Thermal Properties
ValueUnitsTest Method / Conditions
Melt Temperature (at 10°C/min)178°CISO 11357-1/-3
Coefficient of Linear Thermal Expansion (Parallel)120E-6/KISO 11359-1/-2
Coefficient of Linear Thermal Expansion (Normal)120E-6/KISO 11359-1/-2
Specific Heat Capacity of Melt3020J/(kg K)-
Temperature of Deflection Under Load (1.8 Mpa)97°CISO 75-1/-2
Thermal Conductivity of Melt0.22W/(m K)ISO 22007-2
Other Properties
ValueUnitsTest Method / Conditions
Density of Melt1140kg/m³-
Density1440kg/m³ISO 1183
Processing Information (Injection Molding)
ValueUnitsTest Method / Conditions
Melt Temperature (Optimum)215°C-
Melt Temperature (Minimum)210°C-
Melt Temperature (Maximum)220°C-
Mold Temperature (Optimum)90°C-
Mold Temperature (Minimum)80°C-
Mold Temperature (Maximum)100°C-
Annealing Time (Optional)30min/mm-
Drying Temperature80°C-
Annealing Temperature160°C-
Drying Time (Dehumidified Dryer)2 - 4h-
Hold Pressure Time8s/mm-
Hold Pressure Range80 - 100MPa-
Drying Recommendedyes--
Processing Moisture Contentmax. 0.05%-
Ejection Temperature110°C-
VDA Properties
ValueUnitsTest Method / Conditions
Emissionsmax. 8mg/kgVDA 275
Rheological Properties
ValueUnitsTest Method / Conditions
Melt Mass Flow Rate (at 190°C, 2.16 kg)21g/10minISO 1133
Mold Shrinkage (Parallel)1.6%ISO 294-4, 2577
Mold Shrinkage (Normal)1.8%ISO 294-4, 2577

Regulatory & Compliance

Technical Details & Test Data

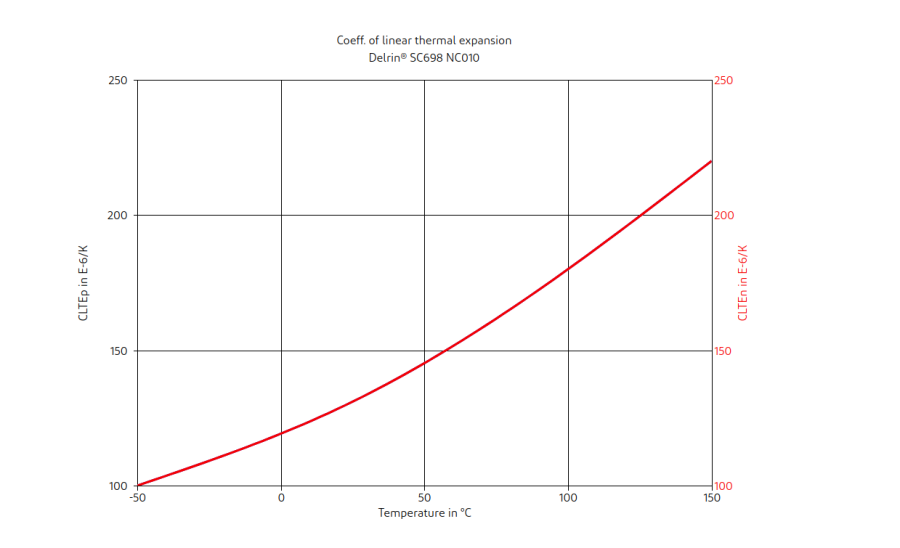

Coeff. of Linear Thermal Expansion

DuPont Delrin SC698 NC010 Coeff. of Linear Thermal Expansion

Secant Modulus-Strain

DuPont Delrin SC698 NC010 Secant Modulus-Strain

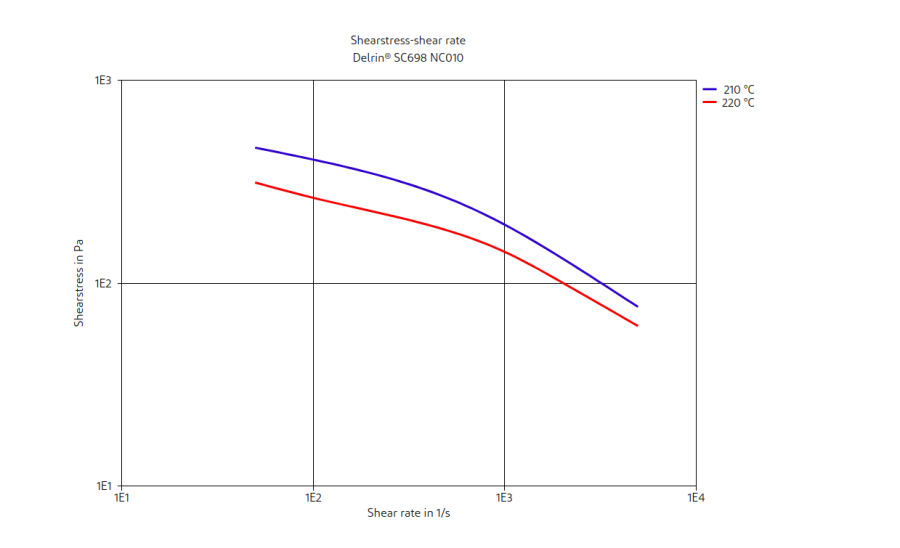

Shearstress-Shear Rate

DuPont Delrin SC698 NC010 Shearstress-Shear Rate

Specific Volume-Temperature (pvT)

DuPont Delrin SC698 NC010 Specific Volume-Temperature (pvT)

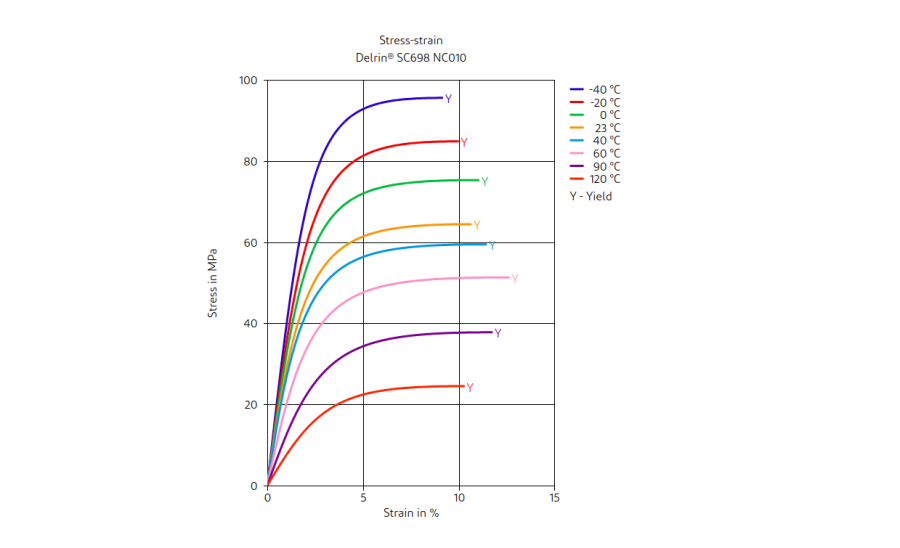

Stress-Strain

DuPont Delrin SC698 NC010 Stress-Strain

Tensile Modulus-Temperature

DuPont Delrin SC698 NC010 Tensile Modulus-Temperature

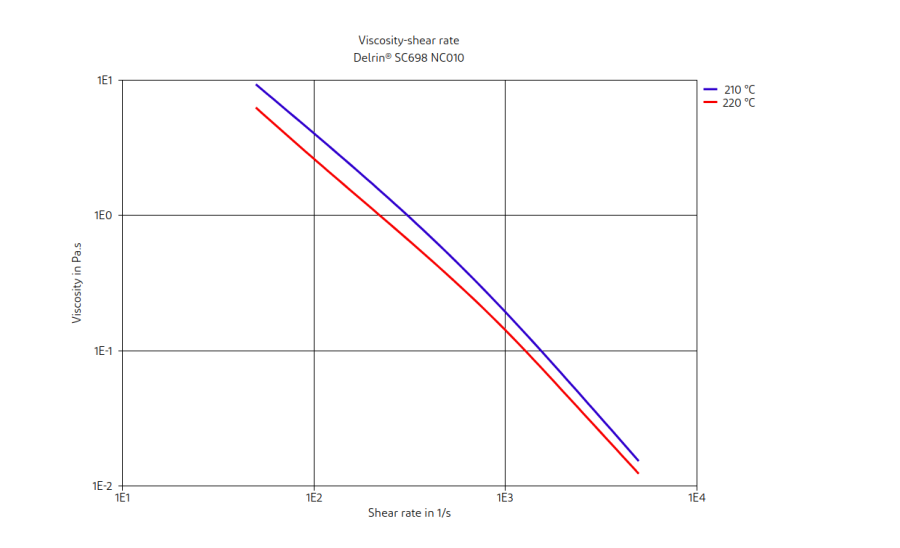

Viscosity-Shear Rate

DuPont Delrin SC698 NC010 Viscosity-Shear Rate
