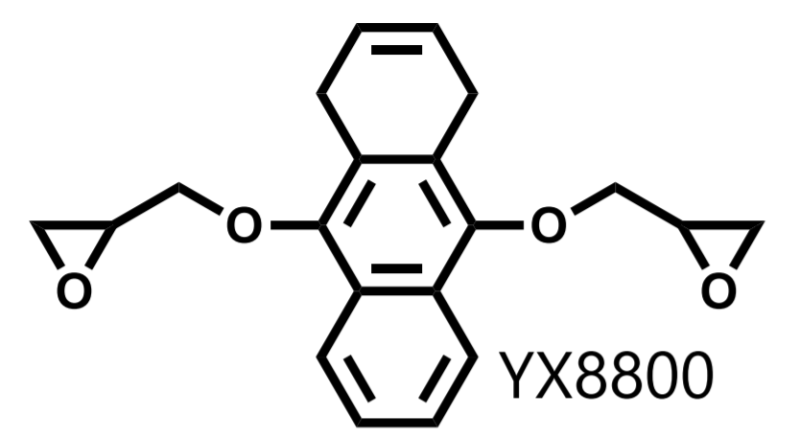

jER™ YX8800 is an anthracene-type epoxy resin with significantly low melt viscosity, high Tg and low-CTE. It can be used for electrical and electronic applications, carbon fiber reinforced polymers (CFRP) and other applications that require flame retardancy. jER™ YX8800 is an adduct formed from the reaction of epichlorohydrin and 1,4-dihydro-9,10-anthracenediol.
Benefits
- High flame retardancy
- Well-balanced mechanical properies
- High electrical reliability
Features
- Abrasion, heat and water resistance
- Electrical insulation
- Good thermal stability
- High glass tansition temperature
- Low CLTE
- Significantly low melt viscosity (melting point: 107°C)
- Low chroline content
Applications
- Electrical and electronic applications (EMC, solder resist, PCB)
- Potting and encapsulation materials.
- Powder coatings
- Adhesives
- Composites
*jER™ is provided by Mitsubishi Chemical Corporation, a member of the Mitsubishi Chemical Group.
Ask The Mitsubishi Chemical Group Questions
Ask the Supplier
Popular The Mitsubishi Chemical Group Products
View All The Mitsubishi Chemical Group ProductsKnowde Enhanced TDS
Identification & Functionality
jER™ YX8800 Features & Benefits
- Highly adhesive to metal, porcelain, concrete
- Excellent insulation property
- High heat resistance
- High chemical resistance
- High water resistance
- Solid type (Flake)
- Significantly low melt viscosity (Melting point: 107°C)
- High Tg and low-CTE
- Low chroline content
- High Flame retardancy
Applications & Uses
jER™ YX8040 is a high purity alicyclic epoxy resin with colorless solid, that is used for optical materials e.g. LED encapsulant, adhesive for display.
Properties
| Value | Units | Test Method / Conditions | |
| Melting Point | 107 | °C | Differential Scanning Calorimetry |
| Value | Units | Test Method / Conditions | |
| Epoxy Equivalent Weight (WPE) | 174 - 183 | g/eq | Potentiometric Titration |
| Harsh Hydrolyzable Chloride | max. 700 | ppm | Potentiometric Titration |
| Total Chloride Content | 1000 | ppm | - |
| Value | Unit | Method | |
| jER™ YX8800 | 100 | phr | |
| Phenol Novolac | 57 | phr | |
| Triphenylphosphine | 1 | phr | |
| Curing condition | 120°C/2h + 175°C/6h | ||
| Cured State Properties | |||
| Tg | 168 | °C |
Dynamic mechanical analysis |
| Elastic modulus@40°C | 1.9 | GPa |
Dynamic mechanical analysis |
| Elastic modulus@250°C | 19 | MPa |
Dynamic mechanical analysis |
| Coefficient of thermal elongation(α1) | 61 | ppm |
Thermo mechanical analysis |
| Coefficient of thermal elongation(α2) | 173 | ppm |
Thermo mechanical analysis |
| Td5 | 327 | °C |
Thermogravimetry-Differential, Thermal Analysis (Heating rate: 10°C/min, in air) |
Technical Details & Test Data

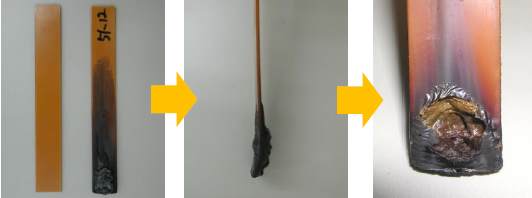

Mechanism of flame retardancy
- Step 1. Carbonized layer is formed.
- Step 2. Heat insulating layer is formed.
- Step 3. Heat and air are kept out.
- Finally fire/flame is extinguished.

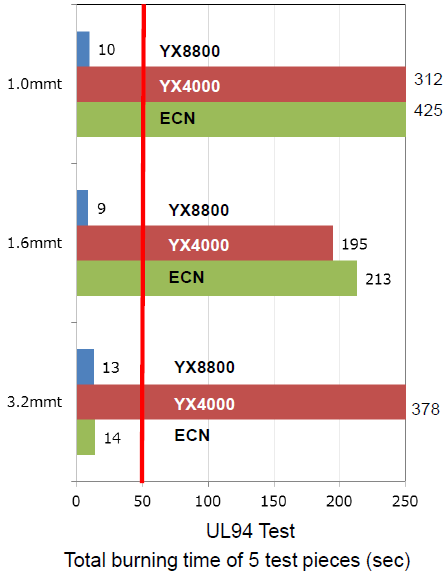

Model encapsulant composition
- Hardener : Phenol aralkyl, Accelerator Triphenylphosphine (2phr)
- Release agent : Carnauba wax (1phr)
- Coupling agent : Epoxy silane (1phr)
- Filler (Fused silica) Content : 85%, 175°C 200sec+8hr
Appropriate choice of Hardener for a desired curing temperature
- Epoxy resin forms 3D crosslinked network structure
- Abundant choices of Epoxy/Hardener combination
Packaging & Availability
Storage & Handling
Carefully read the SDS before using, handling, transporting, storing or disposing. jER™ YX8800 should be stored in tightly closed containers under exclusion of humidity at gentle temperatures. Avoid exposure to direct sunlight. Under these storage conditions the product has a minimum shelf life of three months from date of delivery.
