jER™ YX8800

Sold by The Mitsubishi Chemical Group
Polymer Name: Epoxy Resins & Compounds
Function: Adhesion Promoter, Binder, Coupling Agent, Flame Retardant
Chemical Family: Epoxy & Epoxy Derivatives
Compatible Substrates & Surfaces: Concrete, Glass, Fibers & Fabrics, Metal, Steel, Plastics, Aluminum, Ceramic
Start Order
Secure
Order Quantity
Price
Available upon quote
Minimum Order Quantity
Quote required
Lead Time
Quote required
Available Incoterms
Quote required
Regional Availability
Quote required

Ask The Mitsubishi Chemical Group Questions

User Avatar
User Avatar
LL

Ask the Supplier

User Avatar
User Avatar
LL
TypeDocument Name
Technical Data Sheet
jER™ YX8800 Technical Data Sheet
jER™ YX8800 Technical Data Sheet
Technical Data Sheet
Safety Data Sheet
jER™ YX8800 Safety Data Sheet
jER™ YX8800 Safety Data Sheet
Safety Data Sheet
Brochure
jER™ Epoxy Resin Series Brochure
jER™ Epoxy Resin Series Brochure
Brochure
Brochure
jER™ Low CTE With Flame Retardancy Epoxy Resin Series Brochure
jER™ Low CTE With Flame Retardancy Epoxy Resin Series Brochure
Brochure

Knowde Enhanced TDS

Expand All

+

Identification & Functionality

jER™ YX8800 Features & Benefits

Features
  • Highly adhesive to metal, porcelain, concrete
  • Excellent insulation property
  • High heat resistance
  • High chemical resistance
  • High water resistance
Product Highlights
  • Solid type (Flake)
  • Significantly low melt viscosity (Melting point: 107°C)
  • High Tg and low-CTE
  • Low chroline content
  • High Flame retardancy

Applications & Uses

Usage & Application

jER™ YX8040 is a high purity alicyclic epoxy resin with colorless solid, that is used for optical materials e.g. LED encapsulant, adhesive for display.

Properties

Color
Physical Form
Appearance
Yellow powder solid
Physical Properties
ValueUnitsTest Method / Conditions
Melting Point107°CDifferential Scanning Calorimetry
Typical Properties
ValueUnitsTest Method / Conditions
Epoxy Equivalent Weight (WPE)174 - 183g/eqPotentiometric Titration
Harsh Hydrolyzable Chloridemax. 700ppmPotentiometric Titration
Total Chloride Content1000ppm-
Properties Formulation

  Value Unit Method
jER™ YX8800 100 phr
Phenol Novolac 57 phr
Triphenylphosphine 1 phr
Curing condition 120°C/2h + 175°C/6h
Cured State Properties
Tg 168 °C

Dynamic mechanical analysis

Elastic modulus@40°C 1.9 GPa

Dynamic mechanical analysis

Elastic modulus@250°C 19 MPa

Dynamic mechanical analysis

Coefficient of thermal elongation(α1) 61 ppm

Thermo mechanical analysis

Coefficient of thermal elongation(α2) 173 ppm

Thermo mechanical analysis

Td5 327 °C

Thermogravimetry-Differential, Thermal Analysis (Heating rate: 10°C/min, in air)

Technical Details & Test Data

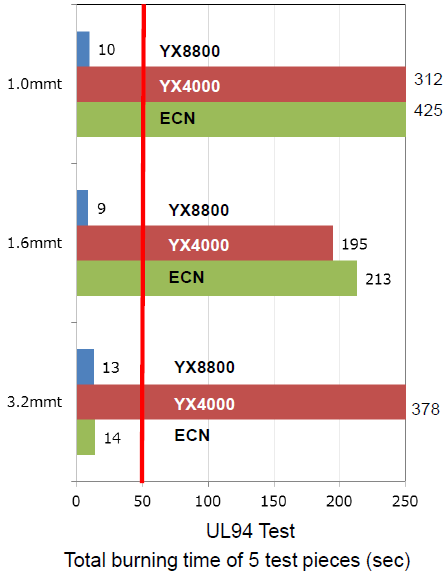

Flame Retardancy Data of YX8800

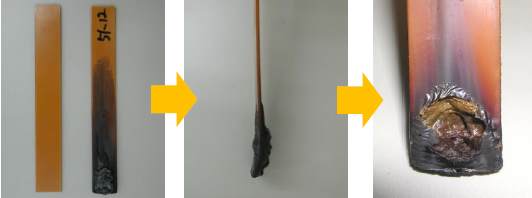

Mechanism of flame retardancy

  • Step 1. Carbonized layer is formed.
  • Step 2. Heat insulating layer is formed.
  • Step 3. Heat and air are kept out.
  • Finally fire/flame is extinguished.


Model encapsulant composition

  • Hardener : Phenol aralkyl, Accelerator Triphenylphosphine (2phr)
  • Release agent : Carnauba wax (1phr)
  • Coupling agent : Epoxy silane (1phr)
  • Filler (Fused silica) Content : 85%, 175°C 200sec+8hr




Typical Reactions with Representative Hardeners

Typical Reactions with Self Polymerization

Selection of Hardeners

Appropriate choice of Hardener for a desired curing temperature

General Ways to Use Epoxy
  • Epoxy resin forms 3D crosslinked network structure
  • Abundant choices of Epoxy/Hardener combination




Packaging & Availability

Packaging Type
Packaging Information
Moisture barrier bag with 20 kg net

Storage & Handling

Shelf Life
3 months
Storage and Handling

Carefully read the SDS before using, handling, transporting, storing or disposing. jER™ YX8800 should be stored in tightly closed containers under exclusion of humidity at gentle temperatures. Avoid exposure to direct sunlight. Under these storage conditions the product has a minimum shelf life of three months from date of delivery.
