TOHMIDE 92

1 of 3 products in this brand
TOHMIDE 92 is fatty polyamide resin especially designed for the flexographic printing ink uses.One of the major characteristics of TOHMIDE 92 the high water resistance of the ink films based on this resin in spite of its good solubility in alcoholic solvents

Chemical Family: Polyamides

End Uses: Flexography Ink, Solventborne Ink

Features: Blocking Resistance, Heat Resistance, Multi-Substrate Adhesion, Oil Resistance, Water Resistance

Technical Data Sheet
  • TypeDocument Name
View All Documents

Knowde Enhanced TDS

Identification & Functionality

Carrier

Solvent-based

Chemical Family

Polyamides

CASE Ingredients Functions

Binder & Resin

Technologies

CASE Ingredients

Product Families

CASE Ingredients — Resins & Binders

Other Resins & Binders

Features & Benefits

CASE Ingredients Features

Blocking Resistance,

Heat Resistance,

Multi-Substrate Adhesion,

Oil Resistance,

Water Resistance

Applications & Uses

Markets

Printing & Packaging

Applications

Printing & Packaging — Printing & Inks

Flexography

Ink & Toner Type

Flexography Ink,

Solventborne Ink

Properties

Physical Form

Pellets,

Solid

Appearance
Brown Yellow Pellets
Typical Properties
ValueUnitsTest Method / Conditions
Softening Point120±5Ball and Ring /℃-
Viscosity (Gardner-Holdt /25℃)*C ~ F--
Acid Valuemax. 7mg KOH/g-
Amine Valuemax. 5mgKOH/g-

Technical Details & Test Data

INK TEST -Test Results： ( Polyamide resin used：)

Sanho Chemical TOHMIDE 92 INK TEST -Test Results： ( Polyamide resin used：)

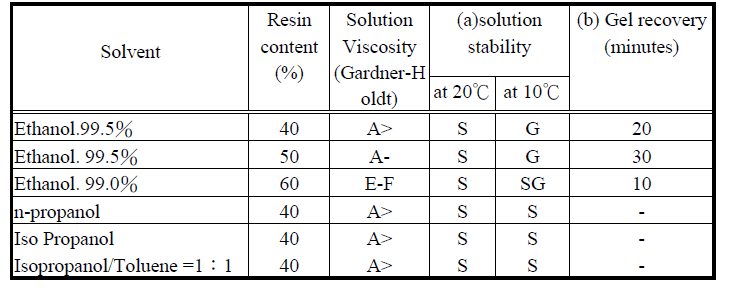

Solubility

Sanho Chemical TOHMIDE 92 Solubility

** (A) Solution stability：Each sample solution, after once completely dissolved, was left standing overnight at the designated temperatures, and then was observed.
S：stable, SG：soft gelled, G：gelled
** (b) Gel recovery： Time(in minutes) needed for each of the once gelled-up solution to fully recover fluidity at 25℃.

INK TEST -Ink Formulation



  • Polyamide resin ：12.0 Parts by Weight
  • Phthalocyanineblue pigment ： 7.5
  • Nitrocellulose. “L-1/8 sec.”(=30％ wetted by isopropanol) ： 3.0
  • Isopropanol ：27.0
  • Ethyl-acetate ： 1.5
  • Ethyleneglyool - monoethylether ： 1.5
  • Total ：52.5
  • About formulation was prepared to ink by a ball milling.
INK TEST -Testing Conditions
  • Water resistance ：Each sample ink was printed onto an treated polyethylene film. The sample print was then immersed in tap water for 16 hours at room temperature. Afterwards the ink film was subjected to “Scotch Tape-Test” with the excess water wiped off.
  • Oil resistance ：Margarine was coated onto the sample prints of treated polyethylene substrate, and 16 hours later, “Scotch Tape-Test” was conducted.
  • Heat (-sealing) resistance：Heat-sealing bar, with the load of 1 kgr./㎝ 2 , was applied onto the sample ink film on treated polypropylene for one second.
  • Anti blocking test ：The sample inks were printed on treated polyethylene film of an aluminum foil. The ink films were then subjected to static load of 1 kgr/㎝ 2 , for 16 hours under a condition of 50℃, R/H=50％

Packaging & Availability

Packaging Type

Bags
