PRF Composite Materials RS-L135

PRF Composite Materials RS-L135 exhibits good mechanical properties after curing at room temperature. If high temperature strength is not required, finished products made with the selection of hardeners up to RS-H136 may be used without further heat treatment. Post curing (heat treatment) will further enhance the mechanical properties and will also increase the heat resistance.

Polymer Name: Epoxy Resins & Compounds

Chemical Family: Epoxy & Epoxy Derivatives

Processing Methods: Compression Molding, Filament Winding, Hand Lay-up, Pultrusion, Vacuum Bagging

End Uses: Wind Turbine Blades

Technical Data Sheet
  • TypeDocument Name
View All Documents

Knowde Enhanced TDS

Identification & Functionality

Composite Materials Functions

Features & Benefits

Labeling Claims
Introduction

This low viscosity laminating system has been designed for the manufacture of glass, carbon and aramid fiber composite components requiring high static and fatigue strength properties. The resins and hardeners contain neither solvent nor fillers, and are Germanischer Lloyds approved, making the RS-L135 epoxy laminating system particularly suitable for marine applications and the manufacture of wind energy turbine blades.

Careful selection of precursors has ensured this system is low in odor and has very good physiological properties, minimizing skin irritation and allergy problems.

For optimum processing flexibility, there is a range of 4 hardeners varying in reactivity, with pot life from 25 minutes to 12 hours. All of the resin/hardener combinations will cure, and are de-mouldable, at room temperature (20 - 25°C). The cured laminate surface will have a high gloss and will be tack-free even in an unfavorable working environment, for instance, high humidity and low temperatures.

The RS-L135 epoxy resin system exhibits good mechanical properties after curing at room temperature. If high temperature strength is not required, finished products made with the selection of hardeners up to RS-H136 may be used without further heat treatment. Post curing (heat treatment) will further enhance the mechanical properties and will also increase the heat resistance.

The mixed viscosity of this resin system ensures a fast, complete impregnation of reinforcement fibers without drainage on vertical surfaces. The addition of fillers such as colloidal silica, microballoons, metal powder etc., is also acceptable to obtain special properties.

Other Features

• Very good physiological properties
• Very good mechanical properties

Applications & Uses

Composites End Use
Applications

• Boats and shipbuilding
• Wind energy turbine blades
• Sports Equipment
• Models

Processing Methods

• Wet layup
• Filament winding
• Pressure molding
• Pultrusion
• Vacuum bag molding

Processing

• Between 10°C and 50°C
• Pot life from ca. 25 minutes to ca. 12 hours

Processing Methods

• Wet layup
• Filament winding
• Pressure molding
• Pultrusion

Processing Data

The optimum processing temperature lies in the range between 20 - 25°C. Higher processing temperatures are possible but will shorten pot life. A 10°C temperature increase will halve the pot life. Water, contained in fillers for example, or very high relative humidity will accelerate the reaction of the resin-hardener mixture. However, there is no significant effect to the strength of the cured product as a result of different temperatures and relative humidity levels during processing.

Properties

Typical Properties
ValueUnitsTest Method / Conditions
Average Epoxide Value0.54 - 0.58--
Colormax. 3Gardner
Density (25°C)1.14-1.18g/cm3-
Epoxide Equivalent175 - 185--
Heat Treatment (150°C)min. 10h-
Heat Treatment (50°C)15h-
Mixed Viscosity (25°C)500 - 1000mPa s-
Processing TemperatureOct-50°C-
Setting Temperature (Initial Cure At Room Temperature)20 - 25°C-
Viscosity (25°C)2400 - 2900mPa s-

Regulatory & Compliance

Approvals

• Germanischer Lloyds approved

Technical Details & Test Data

Mixing Ratios


RS-L135 : RS-H135 ~ RS-H138

Parts by Weight 100 : 35 (+/-2)
Parts by Volume 100: 40 (+/-2)



The specified mixing ratios must be observed; we therefore recommend weighing the resin and hardener precisely using accurate scales. Varying the quantity of hardener will adversely affect the properties of the matrix. The resin and hardener must be mixed thoroughly until they are homogeneously mixed, paying special attention to the walls and the bottom of the mixing container. Do not mix large quantities, especially if highly reactive systems are being used. Heat dissipation from mixing containers is poor, causing the resin-hardener mixture to warm up quicky as a result of the exothermic reaction of the two materials. Temperatures >200°C can be generated causing smoke-intensive burning of the resin-hardener mixture. To avoid this, mix small quantities in large, shallow containers.

Test Data

Processing Time (Pot Life) 100g / 23°C

Resin RS-L135
Hardener RS-H135 RS-H136 RS-H137 RS-H138
ca. 25 - 35 min ca. 90 - 120 mins ca. 5 - 6 hours

ca. 10 - 12 hours



Temperature Rise

PRF Composite Materials RS-L135 - Test Data

Gel Time - Film Thickness 1mm

    Resin RS-L135
Temperature RS-H135 RS-H136 RS-H137 RS-H138
20 - 25°C ca. 4 - 5 hours ca. 6 - 8 hours ca. 10 - 12 hours

ca. 15 - 20 hours

45 - 50°C min. ca. 40 - 50 ca. 1 - 2 hours ca. 3 - 4 hours ca. 6 - 7 hours
Resin Matrix Properties Glass Transition Temperature (Tg)
RS-L135
    RS-H135 RS-H136 RS-H137 RS-H137
7 days at 20 - 25°C °C 45 - 50 45 - 50 - -
24 h. RT + 15 h. 40 - 45°C °C 55 - 60 50 - 55 50 - 55 50 - 55
24 h. RT + 15 h. 50 - 55°C °C 60 - 65 60 - 65 60 - 65 60 - 65
24 h. RT + 15 h. 60 - 65°C °C 70 - 75 70 - 75 70 - 75 70 - 75
24 h. RT + 10 h. 80 - 85°C °C 85 - 90 85 - 90 85 - 90 85 - 90

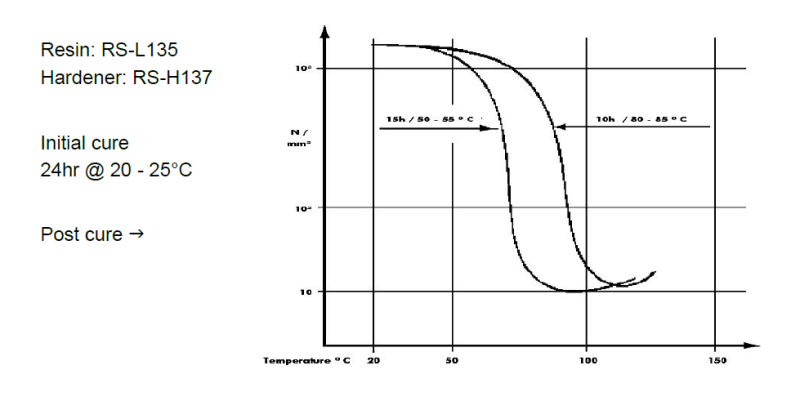

Shear Modulus

PRF Composite Materials RS-L135 - Shear Modulus

Cured - Un-reinforced Matrix Properties

CURING : 24h @ 25° + 15h @ 60 - 65°C



RS - L135 & RS-H135 - RS-H138

Density g/cm3 1.16 - 1.18
Flexural strength N/mm2 115 - 120
Tensile strength N/mm2 75 - 85
Impact Strength Nmm/mm2 35 - 40
Elongation % 6.5 - 7.5
Compression strength N/mm2 110 - 120
Modulus of elasticity kN/mm2 3.0 - 3.2
Water absorption 24 hours / 23°C % 0.10-0.15

Water absorption 7 days / 23°C

% 0.35-0.40

Fatigue under reverse bending stresses acc. DLR Brunswick 10%

  min. 2 x 106

Fatigue under reverse bending stresses acc. DLR Brunswick 90%

  min. 2 x 106



Composite Properties Cured - Fibre Reinforced Properties

CURING: 24h @ 25°C + 15h @ 60 - 65°C

  Vf

RS-L135 & RS-H135 / RS-H138

Flexural strength N/mm2 GFC 470-500
Flexural strength N/mm2 CFC 760-800
Tensile strength N/mm2 GFC 370-390
Tensile strength N/mm2 CFC 520-550
Compressive strength N/mm2 GFC 310-350
Compressive strength N/mm2 CFC 320-350
Interlaminar shear strength N/mm2 GFC 39-45
Interlaminar shear strength N/mm2 CFC 49-53
Flexural modulus kN/mm2 GFC 20-23
Flexural modulus kN/mm2 CFC 43-45



GFC - samples: 16 layers, glass fabric, 296g/m2 8H Satin, 4mm thick.
CFC - samples: 8 layers, SM, 3K carbon fabric, 200g/m2 plain weave, 2mm thick.
Fiber volume fraction of samples 40% - 45%. Data calculated to fiber volume 43%.
Representative data in accordance with WL 5.3203 parts 1 & 2 of the German Aviation Materials Manual, part II.



Safety & Health

Caution

• Do not heat over a naked flame;
• Before warming, open containers to equalize pressure;
• The use safety equipment (gloves, safety glasses, respirator) is mandatory;
• Work in a well ventilated area.

Storage & Handling

Storage

The resins and hardeners can be stored for a minimum of 12 months in the original, sealed containers at 15 - 25°C. Crystallization of these materials may occur at temperatures below 15°C and is visible as a clouding or solidification of the liquid within the container. Before processing, the crystallization must be removed. This can be done, without any degrading the product, by slowly warming the material to approximately 50 - 60°C in a water bath, or oven, and stirring or mixing until the liquid becomes clear.
